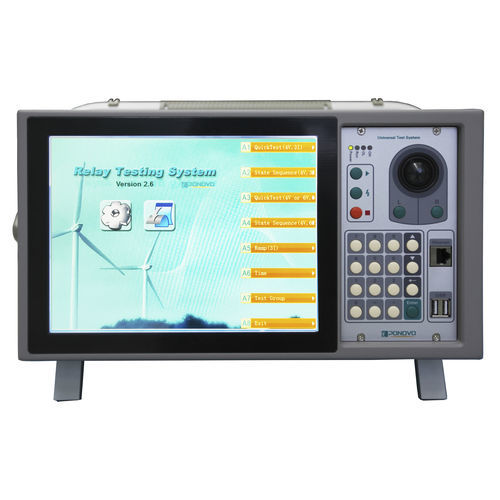

Protection relay test equipment PW866i

electricautomaticdigital

PW866i (6×32A, 4×300V) Protection Relay Tester could be used for testing different kinds of relay, also supports testing IEC61850 combined relays. The test function and features are similar with PW636i. The main difference between PW866i and PW636i is that PW866i has the local control system, with 10.4inch touch screen based on Windows system, a mouse and digital input keys, an Ethernet port used for connect with PC and 2 USB ports to facilitate data transmission. It can be used in power plants, substations, and relay manufactures, etc. Product Features •Current output 6x32A/450VA, 3x64A, 1x180A •Voltage output 4x300V/75VA, 1x600V •Aux DC (0-300V) •12 binary inputs, 8 binary outputs •Support both local control with 10.4inch touch screen and PC control with PowerTest software •Support the test of IEC61850 complied relay •In-built monitoring and recording •More than 500 relay templates offered freely for different relay templates to do automatic testings •Support importing setting value of relays via CSV, XRIO/RIO PONOVO's Powertest default set files automatically into relay templates
