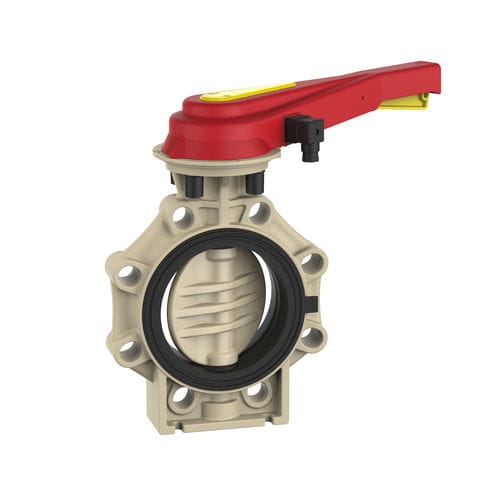

Butterfly valve K4
leverflangePP

butterfly valve
butterfly valve
butterfly valve
Add to favorites
Compare this product


Characteristics

Type
butterfly
Operation
lever
Body
flange, PP, IP67
Other characteristics
locking
DN

Max.: 200 mm
(7.874 in)

Min.: 65 mm
(2.559 in)

Pressure

10 bar
(145 psi)

Temperature

Max.: 50 °C
(122 °F)

Min.: -10 °C
(14 °F)

Flow rate

Max.: 38,000 l/min
(10,038.54 us gal/min)

Min.: 73 l/min
(19.28 us gal/min)

Description

Position feedback integrated in hand lever! Mechanical limit switch IP67 in AG-NI NO Mechanical in AG-NI NC, AU NO, AU NC on request Inductive NPN/PNP on request Namur on request Adjustable Incl. stainless steel bolts Incl. device plug All other advantages of the K4: only sleeve gasket and disc in touch with medium, double sealed shaft, integrated bracket for fix point mounting, simple and quick assembling of the actuator without any extra parts, 10 different disc locking position, reliable „locking-handle-system“, hand lever with marking plate, metal adapter between handle and shaft avoids abrasion of the handle.
