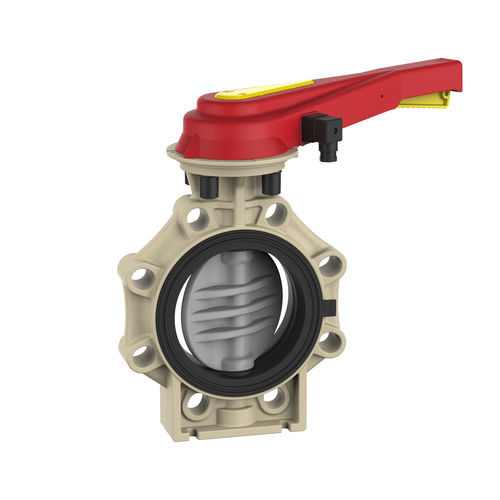

Butterfly valve K4leverflangeNAMUR
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever
- Body
- flange, NAMUR, IP67
- Material
- PVC-U
- Other characteristics
- locking
- DN
65 mm, 80 mm, 100 mm
(2.559 in, 3.15 in, 3.937 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)- Flow rate
Max.: 8,200 l/min
(2,166.21 us gal/min)Min.: 73 l/min
(19.28 us gal/min)
Description
Position feedback integrated in hand lever!
Mechanical limit switch IP67 in AG-NI NO
Mechanical in AG-NI NC, AU NO, AU NC on request
Inductive NPN/PNP on request
Namur on request
Adjustable
Incl. stainless steel bolts
Incl. device plug
All other advantages of the K4:
only sleeve gasket and disc in touch with medium, double sealed shaft, integrated bracket for fix point mounting, simple and quick assembling of the actuator without any extra parts, 10 different disc locking position, reliable „locking-handle-system“, hand lever with marking plate, metal adapter between handle and shaft avoids abrasion of the handle.
Catalogs
Butterfly Valve K4
7 Pages
Wafer check valve K4
6 Pages
