UV disinfection unit AQUASAFE

for trucksfor drinking watermobile

Principle of operation
The tank disinfection module AQUASAFE is ready for operation after filling the tank with water. Automatic activation of the UV lamp provides continuous disinfection during water consumption. When consumption stops, the lamp switches off automatically to preserve the battery supply and restarts automatically when flow resumes. The PLC control system allows setting a start delay to protect the lamp from frequent short cycles. A three-colour signalling panel at the test taps indicates water status: suitable for direct consumption, requires boiling, or wait for lamp warm-up.

Construction of the disinfection module
Module components include a drain system for winter drainage. Access doors are secured with key locks to prevent unauthorized interference. The installation and housing are made of stainless steel with internal insulation. An external socket allows battery charging and an inspection hatch permits periodic replacement of lamp radiators without full lamp removal.

Module working time
The module uses sealed gel batteries that are shock-resistant, non-gassing and operable in any orientation. These batteries do not lose parameters if fully discharged before recharge. With 100 Ah batteries, continuous UV operation typically exceeds 20 hours; operating time can be extended by using higher-capacity batteries.

Operation and use
The AQUASAFE module is maintenance-free apart from periodic lamp replacement; operation consists mainly of fully charging batteries before deployment. On opening a tap the module starts automatically: the PLC controller activates the UV lamp, monitors system operation, displays status signals and manages the energy-saving function.

Benefits

• ensures bacteriologically safe, potable water in all types of tankers and cisterns
• reduces operating expenses and eliminates recurring chemical disinfectant purchases
• accelerates tanker dispatch—ready immediately after filling
• improved water taste by avoiding tank disinfection chemicals
• positive image for the water supplier—modern, safe and customer-friendly emergency water solution
• module configuration can be adapted to specific operational requirements
• long autonomous operation using energy-saving modes
• optional remote monitoring (location, unauthorized access, water level, battery charge)
• ability to plan refill operations based on remote monitoring data

Additional information

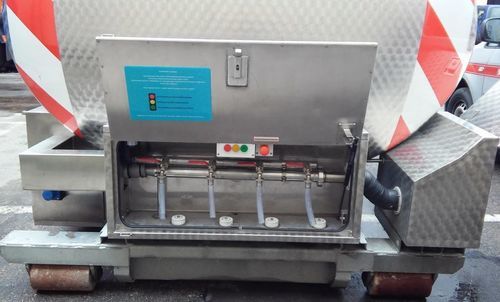

Product is shown with a photographic gallery and a product PDF (brochure) is available for more details.

Technical specifications

• Model name: AQUASAFE
• Disinfection method: UV lamp for continuous disinfection during consumption
• Control: PLC controller with start delay and energy-saving management
• Signalling: three-colour indicator at test taps (direct consumption / after boiling / wait for warm-up)
• Housing: stainless steel with internal insulation
• Protection: doors with key lock; drain system for winter
• Power supply: sealed gel batteries (shock-resistant, non-gassing, operable in any position)
• Battery capacity reference: 100 Ah batteries provide normally >20 hours continuous operation; optional higher-capacity batteries available
• Maintenance: maintenance-free device; periodic lamp/radiator replacement via inspection hatch
• Extras: external socket for battery charging; optional remote monitoring (location, unauthorized access, water level, battery charge)
