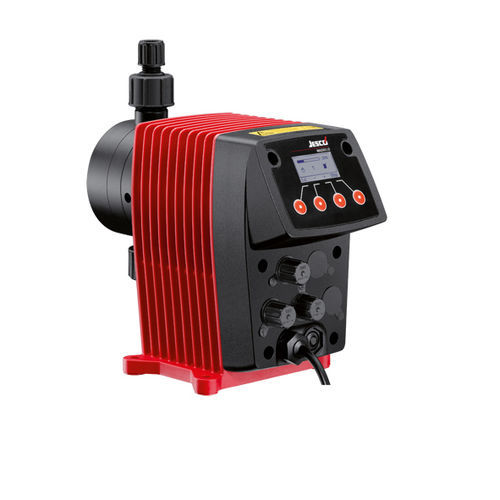

Diaphragm pump MAGDOS

waterwith electric motorstationary

Product overview
MAGDOS electromagnetic diaphragm dosing pumps deliver accurate chemical dosing across a wide flow range (0.5 l/h to 15 l/h) with high back-pressure capability (up to 16 bar at lower flows). The diaphragm is the pumping element actuated by an electromagnet. The design eliminates gears and rotating parts, reducing failure modes and lowering maintenance frequency. The diaphragm ensures leak-tight operation and is resistant to abrasive media.

Valve and viscosity

• Double ball valves ensure dosing accuracy for media up to 300 mPa•s
• For higher-viscosity media, spring valves are used

Materials

• Pump body: metal
• Wetted parts (head, seals, hose connectors) available in PVC, PP, PVDF and stainless steel 1.4571

Controls and features

• Graphic display with multilingual menu and integrated keyboard
• Optional Ethernet interface for control of stroke frequency, number of strokes and run time
• Password protection, calibration function and ECO mode to extend battery life

Manufacturer
Lutz-Jesco GmbH — German manufacturer with approximately 60 years of experience in dosing and disinfection solutions; offers a full range of spare parts and is represented in many countries worldwide.

Technical specifications

• Model: MAGDOS
• Flow range: 0.5 l/h to 15 l/h
• Back pressure capability: up to 16 bar (at lower flow), up to 3 bar (at higher flow)
• Drive type: electromagnetic
• Pumping element: diaphragm
• Valve types: double ball valves; spring valves for higher viscosity media
• Viscosity handling: up to 300 mPa•s (with ball valves)
• Wetted materials: PVC, PP, PVDF, stainless steel 1.4571
• Body: metal
• Interface: graphic display, multilingual menu, integrated keyboard; optional Ethernet
• Security and functions: password protection, calibration, ECO mode
• Maintenance: reduced due to absence of gears and rotating elements
