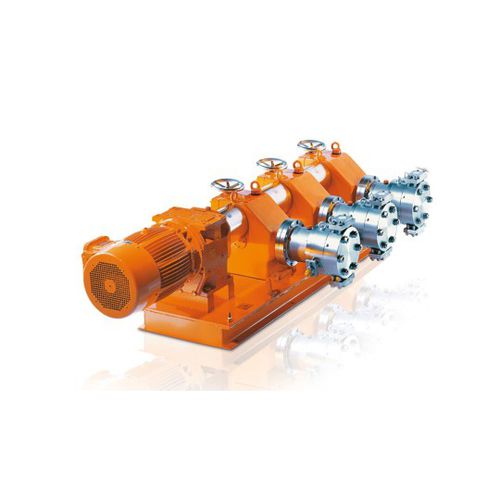

The hydraulic diaphragm metering pump Orlita® MF offers reliable capacities even under high pressure and has a modular construction, therefore has versatile uses. Thanks to its modular design, this pump is tailored to meet your requirements even at very high pump capacities.
Reliable capacity even at high pressure
ORLITA® MF hydraulic diaphragm metering pumps (MFS 18 to MFS 1400) with a stroke length of 15 to 60 mm provide a capacity ranging from 0 to 13,000 l/h at 700 – 6 bar. A wide range of drive versions is available, including some for use in Zone 1 or Zone 2 areas at risk from explosion with ATEX certification. The Orlita® MF product range is designed to comply with API 675. Its modular construction permits the free combination of drives, power ends and dosing heads, producing a pump for a range of different feed rates and media operating at different working pressures.
Excellent process safety and reliability:
PTFE double diaphragm with integrated diaphragm rupture warning system ensures precise and low-wear operation despite high pressures
The product chamber is hermetically separated from the hydraulic part
Integrated hydraulic relief valve and automatic bleed valve for the hydraulic chamber
Wear-free, valveless enforced anti-cavitation of the hydraulic leakage guarantees optimum dosing precision
Cone valves for use as suction and/or discharge valves with minimal wear, good self-cleaning and low pressure loss (NPSHR)
Field of application
Oil/ gas production (onshore/offshore)
Pharmaceuticals & cosmetics
Packaging industry (bottling pumps)
