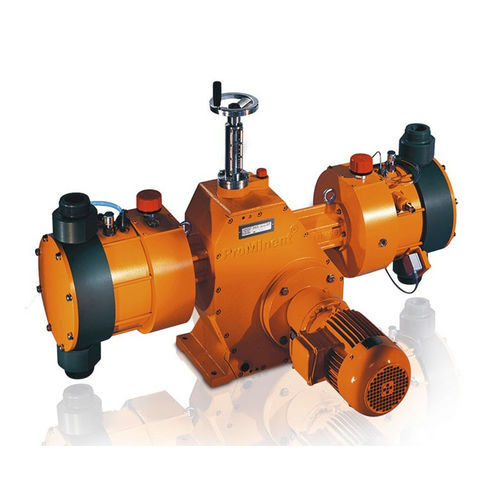

Modular hydraulic pump Makro/ 5
membranefor metering pumps

modular hydraulic pump
modular hydraulic pump
modular hydraulic pump
modular hydraulic pump
Add to favorites
Compare this product


Other characteristics
modular, membrane, for metering pumps

Min.: 6 bar (87 psi)

Max.: 25 bar (363 psi)

Flow rate

Min.: 450 l/h (118.88 us gal/h)

Max.: 6,108 l/h (1,613.56 us gal/h)


Capacity range of single pump: 450 – 6,108 l/h, 25 – 6 bar The robust hydraulic diaphragm metering pump Makro/ 5 guarantees outstanding process reliability. Its modular construction offers extremely good flexibility and a large range of power end versions are available. Excellent feed rates in the low pressure range The Makro/ 5 hydraulic diaphragm metering pump (M5Ha) together with the Makro/ 5 diaphragm and plunger metering pumps form an integrated product range with stroke lengths of 20 and/or 50 mm. This covers the capacity range from 38 to 6,108 l/h at 320 – 4 bar. A wide range of power end versions is available for use in areas at risk from explosion with ATEX certification. The Makro/ 5 product range is designed to comply with API 675 among others. Your benefits Excellent process safety and reliability: PTFE multi-layer diaphragm with integral diaphragm rupture warning system Integral hydraulic relief valve Metering reproducibility is better than ± 1% within the 10-100% stroke length range under defined conditions and with correct installation. Excellent flexibility: The modular construction with single and double head versions permits a wide range of applications, with the double head designs being operated in push-pull mode It is possible to combine up to 4 metering units, even with different pump capacities, in multiple pump systems 5 different gear ratios are available
