Stationary polishing grinder Saphir 560

benchelectricindustrial

Introduction

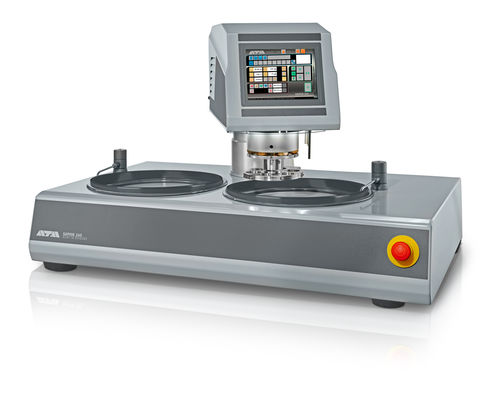

The SAPHIR 560 with RUBIN 520 is a twin-wheel grinder and polisher of recent generation with an innovative grinding and polishing head for working wheels Ø 200–300 mm. The RUBIN 520 head is equipped with an automatic protective hood that improves operational safety. Single and central pressure, memory function, integrated dosing system and automatic material-removed measurement are among the machine's functions. Motor-driven height setting with pneumatic clamping and all characteristics of the Saphir 360 base unit meet high industrial requirements. Removal height can be preset with 0.01 mm accuracy; the material-removed measurement is automatic and the machine switches off when the preset value is reached.

Product Advantages

• Double-wheel grinder/polisher with RUBIN 520 head
• Single and central pressure modes
• Variable speed for working wheel and polishing head
• Electronic control with touch-screen
• Programmable memory for routines
• Polishing head capable of clockwise and counter-clockwise rotation
• Memory function for lateral and height adjustment

Key Features

• Innovative grinding and polishing head for working wheels Ø 200–300 mm
• Automatic protective hood on RUBIN 520 head for improved safety
• Single pressure and central pressure operation (depending on holder)
• Integrated dosing system
• Automatic material-removed measurement with preset cutoff (machine switches off automatically)
• Motor-driven height setting with pneumatic clamping
• Removal height adjustable with 0.01 mm accuracy
• Touch-screen electronic control and programmable memory

Technical specifications

• Working wheels: Ø 200–300 mm
• No. of samples (single pressure): 1–6 samples Ø 50 mm
• Single pressing force: 5–80 N
• Central pressing force: depending on holder
• Connection power: 5.5 kVA
• Drive power (base): 2 x 0.75 kW S6/40%
• Drive power (head): 0.17 kW S1
• Speed (grinder): 50–600 rpm
• Speed (head): 30–150 rpm
• Dimensions (W x H x D): 1020 x 550–650 x 660 mm
• Weight: approx. 110 kg
• Water connection: 1x fresh water connection R½" max. 6 bars
