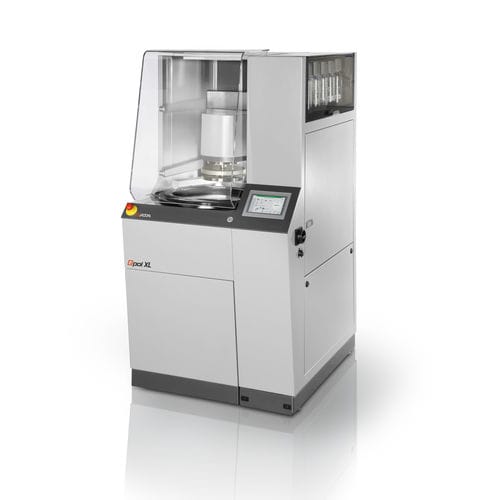

Sample preparation grinding polishing machine Qpol XL

metallographic samplefor floorlapping

Introduction
High sample throughput with maximum process reliability: the Qpol XL is a floor‑standing grinding and polishing machine designed for defined material removal and consistent sample preparation. Integrated load cell and motorized force control enable reproducible results. The intuitive software supports professional user management and storage of up to 200 preparation methods.

Product Advantages

• Working discs Ø 300 / 350 mm
• Drive spindle 2.2 kW – polishing head up to 1.1 kW
• Electronic force control (50–750 N)
• Modular dosing system with up to 6 vessels and optional magnetic stirrer
• Motorized swivelling dosing arm for uniform wetting of the working disc
• Spin cycle function for the working disc (Cleaning Boost)
• Automated safety hood for operator protection
• Fast, easy and tool-free working disc change

Robust engineering - functional design
The Qpol XL features a solid steel frame, powder-coated enclosure and a stainless-steel lined working area to ensure mechanical stability and durable operation in industrial laboratories.

Removal measurement
Integrated system for precise measurement of removed material enables monitoring independent of operating time, sample geometry, material or hardness, supporting reproducible process control.

Convincing performance data
Drive power of the working wheel 2.2 kW (S1). Polishing head drive 0.75 kW (S1) or 1.1 kW (S3). Both working wheel and polishing head can run clockwise, counter-clockwise and in oscillating mode.

Advanced technology and modularity

• Electronic measurement system for controlled press forces between 50 and 750 N
• Integrated removal measurement
• Intuitive operating software with method storage
• Modular dosing concept with level warning

Cleaning station (option)
Optional integrated cleaning station automatically cleans specimens with water, ethanol and air or by spin cycles at adjustable speeds (up to 800 rpm) to minimize cross‑contamination.

Accessories & options
Wide range of standard and special sample holders for various diameters. Options include magnetic stirrer for the dosing system, level alarm for vessels, signal lamp, recirculation cooling, sedimentation tank and manual cleaning spiral rinsing hose.

Qpol XL control software
Modern control software enables intuitive operation; standard preparation methods and common consumables are preinstalled. User account management with configurable rights supports laboratory workflows.

Features

• 7" touchscreen
• Status display and acoustic signal
• Up to 200 programs and full preparation methods storable
• User account management with variable rights
• USB / Ethernet interface for remote maintenance and data transfer

Technical specifications
Working wheels: Ø 300 / 350 mm
Speed working wheel: variable (50 – 600 rpm)
Running direction working wheel: right / left / oscillating
Sample holder: Ø 159 - 204 mm
Speed sample holder: variable (50 – 350 rpm)
Running direction sample holder: right / left
Pressing system: central pressing force
Central pressure: 50 – 750 N
Drive power working wheel: 2.2 kW (S1 operation)
Drive power head: 0.75 kW (S1) / 1.1 kW (S3)
Connection power: 6 kVA
Power connection: 400 V / 50 Hz (3Ph / PE), 480 V / 60 Hz (3Ph / PE), 220 V / 60 Hz (3Ph / PE)
Weight (depending on configuration): ~ 420 kg
