Bench polishing grinder Qpol PLUS series

electricindustrialergonomic

Introduction

• Make it easy. Make it automated.

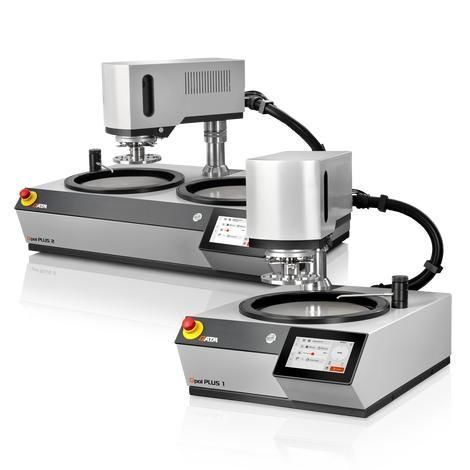

The Qpol PLUS 1 and PLUS 2 are automatic single-wheel or twin-wheel grinding and polishing machines for metallographic sample preparation. They operate in single-pressure or central-pressure modes and accept working wheels Ø 200 / 250 / 300 mm. The high-performance PLUS head supports large sample holders (central pressure) up to Ø 185 mm.

Product Advantages

• Automated processes: High-removal grinding and polishing with variable dosing of diamond suspensions/lubricants, adjustable contact pressure, speed control and rotation direction (in-phase/out-of-phase) for polishing head and working wheel; all parameters freely configurable.
• High flexibility: L-type sample holder enables preparation of very large samples under central pressure.
• High reproducibility: Up to 200 customizable preparation methods can be saved (protected by user account management) to ensure consistent results for repeated processes.

Durable and reliable
Machine body in welded aluminum construction with high-quality powder coating.

• Low-vibration design for smooth operation.
• Speed-controlled drive with sufficient power for larger samples.
• Impact-resistant plastic tub: corrosion-resistant and easy to clean.

Grinding / polishing head with swivel bearings
User-friendly and flexible head with adjustable swivel stops.

• Recessed handles on both sides with integrated push buttons for unlocking and easy handling.
• Large clearance between head and work surface allows quick sample holder replacement.

Simple cleaning system
Single-disc layout allows easy removal of components and full access for cleaning.

• Splash guard ring and working wheel removable with minimal effort to reduce setup and cleaning times.
• Replaceable tub insert (plastic inlay) for removal of abrasion and residual suspension.

Sturdy, pull-out faucet
Facilitates thorough cleaning of the work area and grinding tray.

• Cleaning Boost function removes residual liquid from media (dries at 750 rpm in ~3 s).
• Water valve activates automatically at start and end of the preparation process.
• Robust faucet with flexible hose extension.

Option: Qdoser dosing systems
Optional dosing systems enhance process flexibility.

• Qdoser GO: Fully automatic, software-controlled dispensing system with 4 removable/refillable bottles for reproducible results (optional magnetic stirring).
• Qdoser PLUS: Suitable also for fine polishing; optional upgrade to 1 L bottle for fine polishing suspension.

Ergonomically shaped splash guard
Reduces splashing and can be used as a hand rest during longer procedures.

• Grip recesses permit replacement of grinding/polishing media even with the ring in place.

Intuitive and easy to use
7-inch industrial touchscreen with integrated QATM user software.

• Intuitive menu structure and simple configuration.
• Status bar and audible signal indicate progress and end of process.
• Built-in timer and direct display of torque/contact pressure for reproducible results.

PLUS grinding / polishing head — high throughput and large samples
The PLUS head provides contact pressure of 5–80 N in single-pressure mode and 20–350 N in central-pressure mode. Up to 6 samples Ø 50 mm can be prepared at variable speeds using sample holders Ø 160 mm; L-type holders allow central-pressure holders up to Ø 185 mm.

• Reproducible results through automatic grinding and polishing.
• Recessed handles with push buttons for easy movement.
• Quick sample holder replacement due to ample clearance.

Related media and video
Video available showing Qpol GO / Qpol PLUS preparation workflow and machine features.

Caractéristiques / Spécifications techniques

• Working wheels: Ø 200 / 250 / 300 mm.
• Inner diameter of tub: Ø 350 mm.
• Sample holder (typical): Single pressure Ø 160 mm; central pressure up to Ø 204 mm (diameter); L-type holders support central-pressure holders up to Ø 185 mm.
• Number of samples: Single pressure 1–6 samples Ø 50 mm; central pressure 1–5 samples Ø 70 mm.
• Contact force: Single pressure variable 5–80 N; central pressure variable 20–350 N.
• Speed (working wheel): 30–600 rpm, continuously variable.
• Rotational speed (grinding head): 30–160 min⁻¹.
• Drive power (typical): Working wheel 0.75 kW (S1) / 1.1 kW (S3); grinding head 0.37 kW (S1).
• Connected load: ~1.4 kVA.
• Power connection: 220–240 V, 50/60 Hz (1 Ph/N/PE) or 100–120 V, 50/60 Hz (1 Ph/N/PE).
• Water connection: 1× fresh water G ½" max. 6 bar.
• Dosing device (optional): Qdoser GO, Qdoser PLUS (Qdoser ONE dropper option available).
• Ambient temperature (operating): 10–40 °C.
• Interfaces: USB for data transfer and software updates.
• Qpol PLUS 1 dimensions (W × H × D): 511 × 610 × 756 mm; weight ≈ 65 kg (depending on equipment).
• Qpol PLUS 2 dimensions (W × H × D): 901 × 610 × 749 mm; weight ≈ 80 kg (depending on equipment).
• Additional options: magnetic stirrer for suspensions, dosing configurations (Qdoser GO/PLUS), backflush function for hoses, removable suspension bottles for optimized refill/cleaning.
