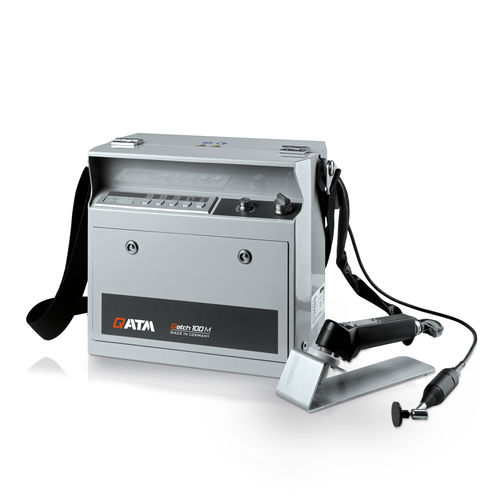

Electrolytic polisher QETCH 100 M

fully-automaticportablefor polishing applications

Overview
The Qetch 100 M is a battery-powered, portable electrolytic polishing and etching unit designed for on-site and field use. Its compact epoxy-coated aluminium housing protects sensitive components during transport and local operation while keeping the device suitable for demanding environments. Microprocessor-controlled automatic programs enable straightforward operation together with adjustable process parameters.

Product advantages

• Portable unit for electrolytic polishing and etching
• Fully automatic program run controlled by microprocessor
• Independent from mains supply thanks to Li-Ion storage battery
• Handle with integrated polishing head and Start/Stop function
• Handle with multicolor LED to indicate current operating state
• Operating panel with clear LCD display for key operating information
• Adjustable voltage and current; programmable operating time

Technical specifications

• Max. power: 160 W
• Max. voltage: 90 V DC
• Max. current: 2 A
• Polishing area: ~ Ø 9 mm
• Dimensions (W x H x D): 380 x 355 x 180 mm
• Electrolyte tank: 1 L
• Weight: ~ 8.5 kg (without electrolyte)
• Power supply: Li-Ion storage battery (mobile operation)
• Control: Microprocessor-controlled automatic program run
• User interface: Handle with Start/Stop and multicolor LED; operating panel with clear LCD
• Adjustable parameters: voltage, current and operating time
