Sample preparation grinding polishing machine Qpol 250 BOT

for metalographic laboratorieslappingfinishing

Introduction

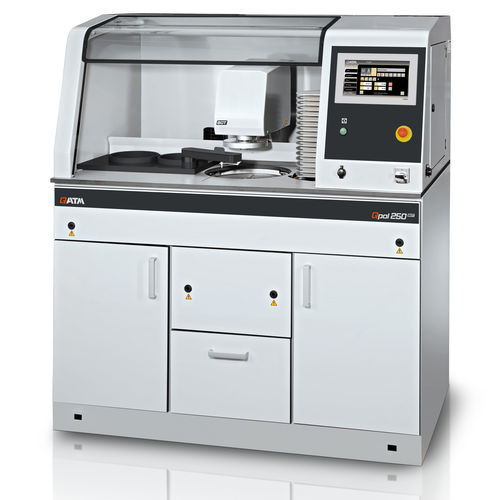

The compact fully automatic grinding and polishing robot Qpol 250 BOT integrates the complete sample preparation workflow—grinding, polishing, dosing and ultrasonic cleaning—into a single unit. It includes a 16-disc changer, a 6-fold dosing unit and an optional insertible 45 L settling tank for System Lab integration. Intuitive operation is provided via a 10" industrial touchscreen and a central-force sample holder with quick manual fixation. All process parameters can be adjusted during automatic operation.

Benefits of automation

• Automated Processes: Grinding, polishing and multi-step cleaning run without operator intervention.
• Flexible Media Selection: Support for up to 16 grinding and polishing media to match material-specific workflows.
• High Reproducibility: Force sensors and controlled removal measurement ensure repeatable preparation results.

Product Advantages

• Central-pressure grinding and polishing system
• Powder-coated aluminium housing for laboratory integration
• Polishing head with variable speed
• Removal measurement with display accuracy 0.1 mm
• Electronic control via industrial touch screen
• Automatic abrasive/disc changer (16 positions)
• Cleaning station with water, compressed air and ethanol
• Ultrasonic cleaner for intermediate or final cleaning
• 6-fold dosing unit (4x diamond suspensions or lubricants, 2x fine polishing suspensions)
• Storage drawer for abrasives and consumables
• Optional insertible 45 L settling tank
• Light barrier to secure the danger area

Cleaning station
The integrated cleaning station performs fully automatic multi-step cleaning using water, air and ethanol. Cleaning steps and dwell times are configurable. The ultrasonic module is available for intermediate and final cleaning and pneumatic drying prevents cross-contamination.

Settling tank
The insertible settling tank (optional) fits into the cabinet and provides:

• 2-chamber PVC tank, 45 L total
• Mobile design with insertion mechanism for System Lab cabinets

Disc changer
The automatic disc changer holds up to 16 grinding and polishing media (e.g. SiC papers or Galaxy discs). During cleaning the changer replaces media automatically and media fixation is handled by the Vacu‑Jet system.

Dosing unit
The dosing unit and bottle depot are arranged for easy access inside the cabinet. Optional level monitoring and magnetic stirring are available to support continuous processes.

Superiority in detail

• 1. Robust housing
  • Powder-coated aluminium housing designed for laboratory environments
  • Seamless integration into System Lab workflows
• 2. Integrated cleaning station
  • Ultrasonic cleaning plus water, ethanol and air
  • Pneumatic drying to avoid contamination
  • Configurable cleaning programs
• 3. Media changer
  • Up to 16 grinding and polishing media for process flexibility
• 4. 10" industrial touchscreen
  • Intuitive QATM user interface
  • Up to 200 user-defined preparation methods
• 5. Intelligent tool head
  • Removal measurement via force sensors
  • Variable head speed for application-specific control
• 6. Sophisticated safety concept
  • Light barrier prevents access to the danger zone during operation

Technical Data

• Working wheels: Ø 250 mm
• Drive power (grinder): 1.1 kW S3/40%
• Drive power (polishing head): 0.17 kW S1
• Sample holder diameter: 160 mm
• Head speed: 30 - 150 rpm
• Grinder speed: 50 - 600 rpm
• Controlled removal measurement (display accuracy): 0.1 mm
• Water connection: 1x fresh water R½" (max. 6 bar)
• Water outlet: 1x waste water DN50
• Compressed-air connection: 6 bar, coupling connector NG8
• Dimensions (W x H x D): 1320 x 1500 x 800 mm
• Media changer: up to 16 discs
• Dosing unit: 6-fold (4x diamond suspension/lubricant, 2x fine polishing suspension)
• Cleaning: water, air, ethanol + ultrasonic cleaner
• Settling tank: 2-chamber, 45 L (insertible option)
