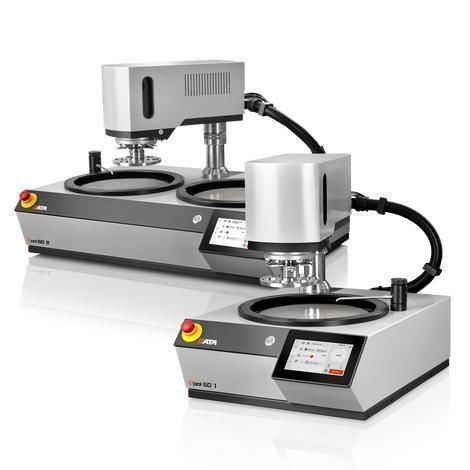

Bench polishing grinder Qpol GO series

electricindustrialergonomic

Introduction
Qpol GO 1 (single wheel) and Qpol GO 2 (twin wheel) are automatic grinding and polishing machines designed for metallographic sample preparation. They accept working wheels Ø 200, 250 or 300 mm and support single-pressure and central-pressure modes.

Product Advantages

• Automated process control: programmable dosing of diamond suspensions and lubricants, adjustable contact pressure, speed control and selectable rotation direction (in-phase/out-of-phase) between polishing head and working wheel.
• User interface: 7-inch industrial touchscreen with intuitive QATM software for recipe management and process monitoring.
• Reproducibility: up to 200 preparation methods can be saved per user account to ensure consistent results.

Durable and reliable construction
Welded aluminum machine body with industrial powder coat, low-vibration design and speed-controlled drive suitable for larger samples. Impact-resistant plastic tub for corrosion resistance and easy cleaning.

Grinding/polishing head with swivel bearings

• Adjustable swivel stops for simple positioning and handling.
• Recessed handles with integrated push buttons for unlocking and safe operation.
• Large clearance between head and work surface for easy sample holder changes.

Simple cleaning system

• Single-disc layout allows quick removal of components and easy access for cleaning.
• Removable splash guard ring and working wheel reduce setup and cleaning time.
• Replaceable plastic tub insert for fast removal of residues and abrasives.

Sturdy, pull-out faucet

• Flexible hose extension for thorough cleaning of the work area and tub.
• Cleaning Boost function removes residual liquid from media (dries at 750 rpm in approx. 3 seconds).
• Water valve activates automatically at the start and end of a preparation process.

Option: Qdoser dosing systems

• Qdoser GO: fully automatic, software-controlled dispenser with 4 removable/refillable bottles for reproducible dosing (optional magnetic stirring).
• Qdoser ONE: dropper bottle for manual continuous dosing.

Ergonomically shaped splash guard

• Reduces splashing and serves as a comfortable hand rest during longer procedures.
• Grip recesses permit replacement of media while the ring remains in place.

Intuitive operation

• Integrated 7-inch touchscreen running QATM software with clear menu structure and progress indicator.
• Built-in timer, direct display of torque/contact pressure and audible signal at process end.
• USB port for data transfer and software updates.

Grinding/polishing heads & safety

• Supports single-pressure and central-pressure operation modes.
• Two-hand operation for operator safety and emergency stop to halt all movements.

Consumables & process enhancements
QATM consumables are recommended for optimal results. Qdoser GO bottles (500 ml glass screw-top) accept diamond suspensions, lubricants or fine-polishing media; bottles are removable and easy to clean. Optional magnetic stirrer prevents settling for consistent dosing.

Technical specifications

• Model / Series: Qpol GO (GO 1 single wheel, GO 2 twin wheel)
• Working wheels: Ø 200 / 250 / 300 mm
• Inner diameter of tub: Ø 350 mm
• Sample holder diameter: Ø 130 mm
• Number of samples: Single pressure: 1–6 samples Ø 40 mm; Central pressure: 1–5 samples Ø 40 mm
• Contact force: Single pressure: 5–80 N (variable); Central pressure: 20–350 N (variable)
• Speed (working wheel): 30–600 rpm, continuously variable
• Grinding head speed: 30–160 min-1
• Water connection: 1x fresh water G ½" max. 6 bar
• Dosing device (optional): Qdoser GO, Qdoser ONE (Qdoser Plus optional)
• Operating ambient temperature: 10–40 °C
• Drive power: working wheel 0.75 kW (S1) / 1.1 kW (S3); grinding head 0.37 kW (S1)
• Connected load: 1.4 kVA
• Power connection: 220–240 V, 50/60 Hz (1 Ph/N/PE) or 100–120 V, 50/60 Hz (1 Ph/N/PE)
• Interfaces: USB
• Dimensions (W x H x D): Qpol GO 1: 511 x 610 x 756 mm; Qpol GO 2: 901 x 610 x 749 mm
• Weight: Qpol GO 1 ~65 kg; Qpol GO 2 ~80 kg
• Sample capacity with Ø 130 mm holders: up to 6 samples (Ø 40 mm) prepared at variable speeds, same or opposite directions
