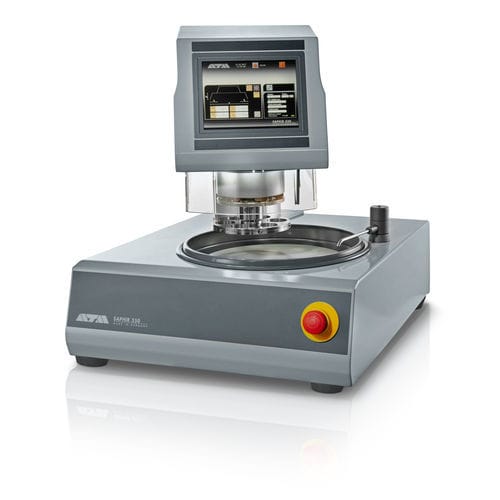

Stationary polishing grinder Saphir 550

benchpneumaticelectric

Introduction
The SAPHIR 550 with RUBIN 520 is a next-generation single-wheel grinding and polishing machine designed for working wheels Ø 200 - 300 mm. The RUBIN 520 head features an automatic protective hood and advanced control functions including selectable single or central pressure, programmable memory, integrated dosing and automatic material-removed measurement. Motor-driven height adjustment with pneumatic clamping and the features of the SAPHIR 350 base unit deliver precise, repeatable preparation. Removal height can be preset with 0.01 mm accuracy and the machine stops automatically when the preset material removal is reached.

Main features

• Single-wheel grinder/polisher with RUBIN 520 head
• Selectable single or central pressing force
• Variable speed for working wheel and polishing head
• Electronic control with touch-screen
• Programmable routines and memory
• Polishing head with clockwise/counter-clockwise rotation
• Memory function for lateral and height adjustments
• Automatic front protective hood for operator safety

Operational & safety highlights
The RUBIN 520 head integrates an automatic protective hood to enhance operator safety. The control system manages single and central pressing force, supports an integrated dosing system and performs automatic measurement of material removed. Motorized height adjustment with pneumatic clamping ensures planar preparation. Removal height can be defined with 0.01 mm accuracy; the machine stops automatically when the preset removal value is reached.

Consumables & support
Optimal grinding and polishing results require matching consumables and instruments. QATM provides dedicated consumables optimized for the SAPHIR 550 / RUBIN 520 configuration. Technical support, spare parts and application advice are available to ensure process reproducibility and uptime.

Multimedia
Instructional and demonstration videos are available to illustrate correct operation, setup procedures and central pressure use.

Technical specifications

• Working wheels: Ø 200 - 300 mm (note: product text also references working wheels Ø 250 - 300 mm)
• No. of samples (single pressure): 1 - 6 samples Ø 50 mm
• Single pressing force: variable, 5 - 80 N
• Central pressing force: variable, 20 - 400 N
• Connection power: 3.2 kVA
• Drive power (base): 0.75 kW S6/40%
• Drive power (head): 0.17 kW S1
• Speed (grinder): 50 - 600 rpm
• Speed (head): 30 - 150 rpm
• Dimensions (W x H x D): 560 x 550 - 650 x 660 mm
• Weight: ≈ 85 kg
• Water connection: 1x fresh water connection R½" max. 6 bars
