Automatic filling machine

bottlefor viscous liquidssauce

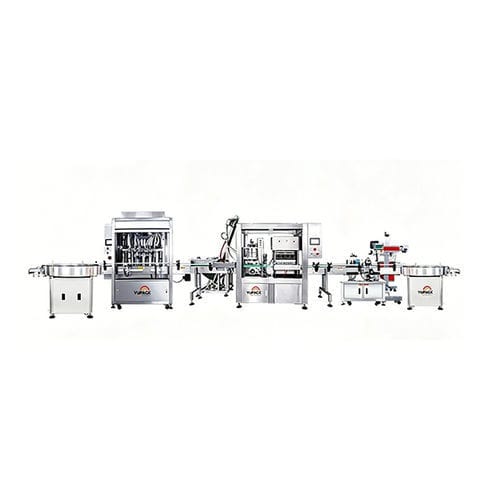

Product Overview The SFL-300 Sauce Filling Machine is an automated filling line designed for high-viscosity, particle-containing and fibrous sauce products. Offering servo-driven piston metering and optional rotary pump metering, it supports accurate quantitative filling of tomato sauce, chili sauce, mayonnaise, honey, jam, chocolate sauce, peanut butter, bean paste, sesame paste, hot pot base and similar products. Constructed from food-grade stainless steel and controlled via PLC/HMI, the SFL-300 ensures consistent filling performance and easy operation.

Key Features

• High-Precision Piston Metering: servo-driven piston pump for accurate stroke control and stable filling accuracy of ±0.5% ~ 1%.
• Optional Rotary Pump Metering: suitable for particle-containing or fibrous sauces (meat/vegetable pieces); low shear preserves particle integrity.
• Anti-Drip Nozzles: standard anti-drip/suck-back nozzles prevent stringing and dripping, keeping containers and conveyors clean and reducing product waste.
• Hopper Agitation: slow-speed scraper or spiral agitator to continuously mix hopper contents, preventing layering, sedimentation and bridging.
• Heating/Insulation (Optional): hopper and pipeline heating/insulation maintain flowability for high-viscosity or heat-sensitive products.
• PLC Touchscreen Control: HMI with digital volume setting, multiple recipe storage and one-touch recall for efficient changeovers.
• All-Stainless Steel Construction: product-contact parts in 304/316L stainless steel compliant with food hygiene standards; corrosion-resistant and easy to clean.
• CIP Online Cleaning (Optional): pipeline and filling head cleaning without disassembly to reduce cleaning and changeover time.

Application Scenarios

• Condiments: tomato sauce, chili sauce, garlic sauce, oyster sauce, bean paste
• Bakery / Desserts: chocolate sauce, caramel, jam, peanut butter, sesame paste
• Personal Care / Chemicals: facial cleanser, body wash, shampoo, conditioner, lotions, adhesives, sealants
• Pharmaceutical: ointments, gels

Technical specifications

• Filling systems: servo-driven piston metering (standard) and optional rotary pump metering for particle/fiber products
• Filling accuracy: ±0.5% ~ 1%
• Nozzles: anti-drip / suck-back nozzles standard
• Hopper agitation: slow-speed scraper or spiral agitator to prevent sedimentation and bridging
• Optional features: rotary pump system, hopper and pipeline heating/insulation, CIP online cleaning
• Control: PLC with HMI touchscreen, digital filling volume, multi-recipe storage and recall
• Material: product-contact parts 304 or 316L stainless steel (food/pharma hygiene compliant)
• Typical filled products: tomato sauce, chili sauce, salad dressing, mayonnaise, honey, jam, chocolate sauce, peanut butter, bean paste, sesame paste, hot pot base and similar high-viscosity or particle-containing sauces
