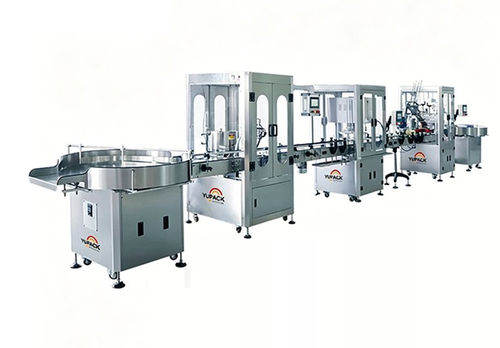

Automatic filling and packaging line

for the food industry

Product Overview
The LF-Series Liquid Filling Line is an automated quantitative filling solution for a wide range of low- to high-viscosity liquids. Metering options include flowmeter, piston pump and weighing systems to match product characteristics and accuracy requirements. Constructed with food/pharma-grade stainless steel, PLC control and HMI operation, the line is configured to serve small, medium and large production environments.

Key Features

• Multiple metering methods: selectable flowmeter, piston pump or weighing type to suit liquids and accuracy needs.
• High filling accuracy: typically ±0.5%–1%; weighing type up to ±0.2%–0.5%.
• Scalable heads: configurable from 1 to 24 filling heads; inline or rotary layouts for low to high speed.
• PLC with HMI touchscreen: digital volume setting, recipe storage and one-touch recall for repeatable production.
• Anti-drip/suck-back nozzles: prevent dripping and contamination at bottle mouths and conveyors.
• All stainless-steel contact parts: 304 or 316L materials compliant with food and pharmaceutical hygiene standards.
• Optional systems: heating/insulation for viscous products, automatic level control, CIP online cleaning, explosion-proof configuration.

Application Scenarios

• Food & Beverage: water, juices, alcoholic beverages, condiments, edible oils.
• Daily Chemical: shampoos, body wash, laundry detergents, dishwashing liquids.
• Pharmaceutical: oral liquids, disinfectants, liquid medicines.
• Chemical: lubricants, antifreeze, solvents, coatings.
• Agriculture & Others: pesticides, liquid fertilizers.

Technical Characteristics

• Metering methods: flowmeter, piston pump, weighing type.
• Filling accuracy: typical ±0.5%–1%; weighing type up to ±0.2%–0.5%.
• Filling heads: 1–24 configurable heads.
• Structure: inline or rotary options.
• Control: PLC with HMI touchscreen, digital volume setting, multiple recipe storage.
• Nozzles: anti-drip / suck-back design.
• Construction: product-contact parts in 304 or 316L stainless steel (food/pharma grade).
• Options: heating/insulation, automatic level control, CIP, explosion-proof configurations.
• Suitable liquids: water, beverages, alcoholic drinks, edible oils, lubricants, detergents, pharmaceutical liquids, chemical solvents, pesticides, liquid fertilizers.
• Designed for: flexible capacity from small to large production enterprises.
