Fully-automatic filling machine

pouchpowderfor the food industry

Overview

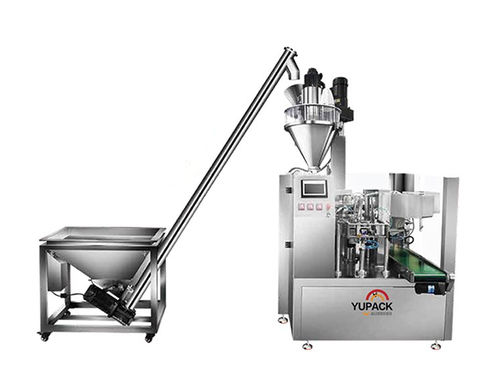

The powder pre-made pouch filling machine is a fully automated packaging system that integrates bag picking, bag opening, weighing/filling and sealing. Designed specifically for powder and fine granular products, it combines a servo-driven auger dosing unit with robotic bag handling to provide continuous, unattended operation from bag feeding to finished pouch discharge. Suitable for milk powder, protein powder, pharmaceutical powders, seasonings and chemical powders for industrial packaging lines.

Product Description

• Automatic Bag Feeding System
  • Robotic arm or suction-cup device for automatic bag picking and opening
  • Compatible with multiple pre-made pouch formats (stand-up pouches, flat pouches, zipper pouches, etc.)
  • Eliminates manual feeding to reduce labor requirements
• High-Precision Auger Dosing
  • Servo motor-driven auger dosing mechanism
  • Filling accuracy stable at ±1%~2% for precise quantitative filling
• Automatic Sealing System
  • Available with heat sealing or ultrasonic sealing modules
  • Optional gas-flush or nitrogen fill to extend shelf life
• PLC Touchscreen Intelligent Control
  • Large HMI for recipe storage and quick format changeover
  • Adjustable parameters via touchscreen: filling volume, sealing temperature, running speed
• Detection and Rejection System (Optional)
  • Optional empty-bag detection
  • In-line weight check and automatic rejection of non-conforming pouches
• All-Stainless Steel Construction
  • Product-contact parts and frame in 304/316L stainless steel
  • Designed for food and pharmaceutical hygiene standards; corrosion-resistant and easy to clean
• Modular Design
  • Independent modular stations for simplified maintenance
  • Flexible expansion or functional upgrades to meet production needs

Application Scenarios

• Food industry: milk powder, coffee powder, flour, starch, seasoning powder, spices
• Health & supplements: protein powder, probiotic powder, collagen powder, meal replacement powders
• Pharmaceuticals: medicinal powders, traditional medicine powders, veterinary powders
• Chemicals: fine chemical powders, additives, pigment powders
• Agriculture: pesticide powders, feed additives

Technical Specifications

• Dosing system: servo motor-driven auger dosing
• Filling accuracy: ±1%~2%
• Bag feeding: robotic arm or suction-cup automatic bag picking and opening
• Sealing options: heat sealing or ultrasonic sealing; optional gas-flush / nitrogen filling
• Control: PLC with large HMI, multiple recipe storage
• Optional detection: empty-bag detection, weight check, product rejection
• Construction material: 304/316L stainless steel (product-contact parts and frame)
• Compatible pouch types: stand-up pouches, flat pouches, zipper pouches and other pre-made pouches
• Design: modular station layout for easy maintenance and upgrades
