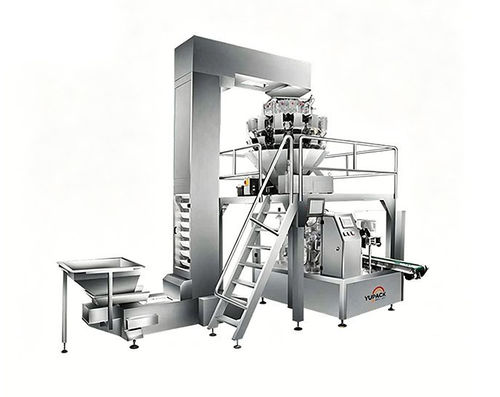

Fully-automatic filling machine

pouchfor granulatesfor solids

Overview
The Pre-made Pouch Filling Machine for granules is a fully automated packaging unit integrating bag picking, opening, filling and sealing. Designed for pre-made pouches (stand-up, flat, zipper, 4-side seal) and for handling granules, chunks, flakes and free-flowing materials. Metering options include measuring-cup volumetric, electronic combination scale and linear scale, paired with a robotic bag-feeding mechanism for continuous automatic operation from bag supply to finished product discharge.

Key features

• Automatic bag feeding: Robotic arm or vacuum pick-and-place for consistent bag pickup and opening across multiple pouch formats, minimizing manual handling.
• Multiple metering systems:
  • Measuring cup (volumetric): Simple, high-speed solution for free-flowing granules. Typical accuracy ±2%–3%.
  • Electronic combination scale: High-precision weighing for irregular or high-value products. Typical accuracy ±1%–2%.
  • Linear scale: For large fills and high-dose granules. Typical accuracy ±1%–2%.
  Selectable per product characteristics and accuracy requirements.
• Sealing options: Heat sealing or ultrasonic sealing; optional gas flush or nitrogen filling to extend shelf life.
• Anti-pinch seal design: Special sealing geometry prevents product entrapment in the seal area to avoid leaks and ensure package integrity.
• PLC with HMI: Large touchscreen HMI with recipe storage for quick setup of fill volume, sealing temperature and line speed.
• Quality control (optional): Empty bag detection, weight check, metal detector and automatic rejection to maintain finished-product quality.
• All-stainless steel construction: Product-contact parts and machine frame in 304/316L stainless steel for food-grade hygiene, corrosion resistance and easy cleaning.
• Modular station design: Independent modules for bag handling, dosing and sealing for easy maintenance and future functional expansion.

Application scenarios

• Food: nuts, seeds, candies, pet food, chocolate beans, puffed snacks
• Agriculture & seeds: grains, pulses, feed pellets
• Seasonings: salt, sugar, powdered/ granular seasonings
• Frozen foods: frozen dumplings, diced vegetables, french fries
• Chemical industry: plastic pellets, fertilizer granules, detergent granules

Technical specifications

• Function: Automatic bag picking, opening, filling and sealing for pre-made pouches.
• Compatible pouch types: Stand-up pouches, flat pouches, zipper pouches, four-side seal pouches, etc.
• Metering options & accuracy: Measuring cup volumetric (±2%–3%), Electronic combination scale (±1%–2%), Linear scale (±1%–2%).
• Sealing: Heat sealing or ultrasonic sealing; optional gas flush / nitrogen filling.
• Anti-pinch sealing mechanism to prevent product entrapment.
• Control: PLC with large HMI supporting recipe storage, fill, seal temperature and speed settings.
• Optional QC: Empty-bag detection, weight check, metal detection, automatic rejection.
• Materials: 304/316L stainless steel for product-contact parts and frame (food-grade, corrosion-resistant, easy to clean).
• Design: Modular station configuration for maintenance convenience and scalable upgrades.
