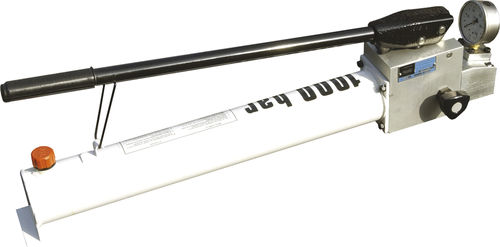

Lever hydraulic pump
pistonsingle-actingdouble-acting

lever hydraulic pump
lever hydraulic pump
lever hydraulic pump
Add to favorites
Compare this product


Characteristics

Type
piston
Operation
lever
Other characteristics
double-acting, single-acting
Pressure

500 bar, 700 bar, 1,000 bar (7,252 psi)

Description

- 2 speeds - for single acting cylinders - Pressure relief valve setting : 1000 bar - Handle lock - Low effort lever •Standard pressure 500 bar (maxi 600 bar) •2 speeds : - LP = 11 cm3 / pump stroke until 80 bar - HP = 1,13 cm3 / pump stroke until 1000 bar •Tanks capacity : 1,5L, 6L and 10L •G1/4" oil port •Maximum effort on the lever : 30 kN •Warning : this pump must be fitted with 1000 bar accessories : block, adaptor, pressure gauge and flexible hose - 2 speeds - for single acting cylinders - Pressure relief valve setting : 500 bar (standard setting) or 600 bar (maximum setting) - Handle lock - Low effort lever •Standard pressure 500 bar (maxi 600 bar) •2 speeds : - LP = 11 cm3 / pump stroke until 80 bar - HP = 1,8 cm3 / pump stroke until 600 bar •Tanks capacity : 1,5L, 6L and 10L •M18x1,5 oil port •Maximum effort on the lever : 30 kN Steel hand pumps : Working pressure 700 bar. 1 speed pumps : 2,5 cm3 / pump stroke 2 speeds pumps : - LP = 19 cm3 / pump stroke until 15 bar - HP = 2,5 cm3 / pump stroke until 700 bar Tanks from 0,4L to 12L (depends on models) 3/8" NPT oil port Different types of hand pumps available : Hand pumps PMS 7104-710-712 : 1 speed, for single acting cylinders Hand pumps PMS 733-736-7312 : 2 speeds, for single acting cylinders Hand pumps PMD 733-736-7312 : 2 speeds, for double acting cylinders Light alloy hand pumps : Working pressure 700 bar. 2 speeds pumps : - LP = 12 cm3 / pump stroke until 80 bar - HP = 1,94 cm3 / pump stroke until 700 bar Tanks capacity : 1L, 1,5L, 3L and 6L G1/4" oil port Different types of hand pumps available : Hand pumps QMS 720-721-723-726 : 2 speeds, for single acting cylinders

Catalogs

No catalogs are available for this product.

See all of QUIRI‘s catalogs
