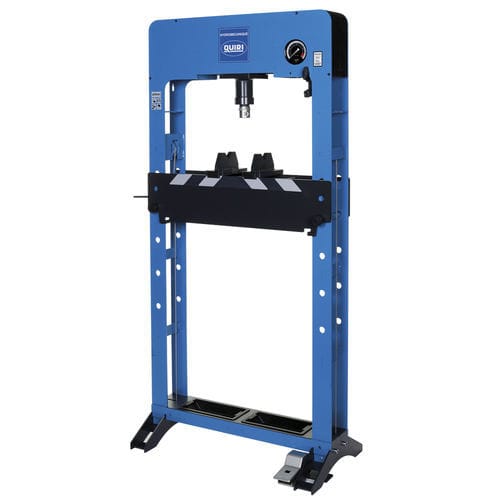

Hydraulic press PRD serieshydro-pneumaticelectricforming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, hydro-pneumatic, electric
- Function
- forming
- Structure
- frame
- Force
20 tf, 30 tf, 50 tf
- Stroke
120 mm
(4.724 in)- Weight
143 kg, 147 kg, 191 kg
(315 lb, 324 lb, 421 lb)
Description
Air hydraulic powered presses:
Same frame and cylinder than hand pump presses
Pedal control air hydraulic pump and 1 speed hand pump (for precision jobs)
Hydraulic pressure proportional to air pressure
Air consumption 270 l/min (without load) at 7 bar air pressure
In compliance with European directive 2006/42/CE
Pedal control can be replaced by two hands control
