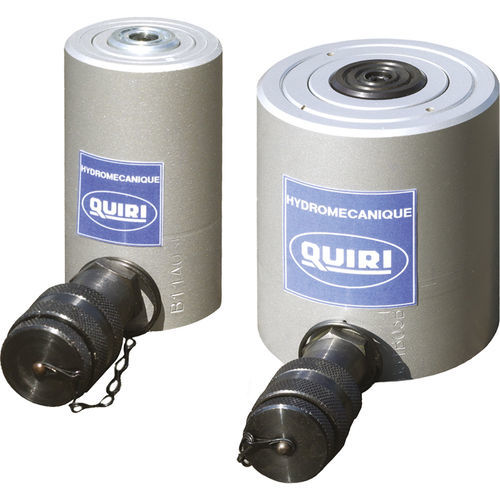

Hydraulic cylinder
double-actingspring-returnsingle-acting load-return

hydraulic cylinder
hydraulic cylinder
hydraulic cylinder
hydraulic cylinder
Add to favorites
Compare this product


double-acting, spring-return, single-acting load-return
light alloy
Other characteristics
hollow-plunger, with lock-nut

700 bar (10,152.6 psi)


Light alloy cylinders from 27 to 200 T, working pressure 700 bar : - Single or double acting - Load return or spring return - Hollow, with lock nut - Fitted with standard screwing coupling Cylinders design : •Corrosion resistant light alloy body. •Corrosion resistant light alloy piston rod. •Steel guiding ring, full charge mechanical stop. •High pressure «V» pack piston seal, maximum temperature : 100°C. •PTFE sliding ring (low friction). •Return spring with attach nuts. Spring attach screw also enable cylinder drain. •Wiper seal to prevent from external pollution. •Flat or tilt (optional) saddle. •Body collar thread •4 base threaded mounting holes •3/8" NPT oil port. •Fitted in standard with HF738 coupler Different types of cylinders available : •QSR cylinders : single acting, spring return •QER cylinders : single acting, with lock nut, spring return •QCR cylinders : hollow piston rod, single acting, spring return •QD cylinders : double acting


No catalogs are available for this product.

See all of QUIRI‘s catalogs
