Hydraulic hose elastomerpolyurethanepolyester
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- elastomer, polyurethane, polyester, aramid
- Applications
- suction
- Other characteristics
- reinforced
- Inner diameter
9.8 mm
(0.386 in)- Outer diameter
18.8 mm
(0.74 in)- Pressure
700 bar
(10,152.642 psi)
Description

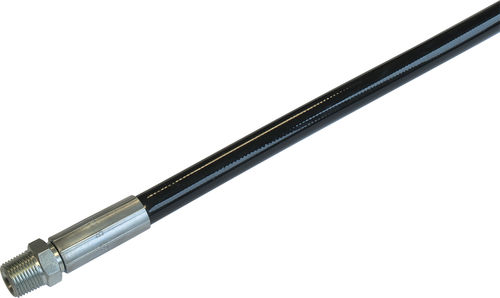

External covering in polyurethane, internal hose in polyester elastomer reinforced with 1 or 2 braids of aramid fiber plus one steel braid.
Burst pressure: 2800 bar
Maximum working pressure: 700 bar
Safety coefficient: 4
Internal diameter: 9,8 mm
External diameter: 18,8 mm
Minimum bending radius: 95 mm
Depending on their working conditions the hoses have limited life time.
Effective hose life time depends on:
– The effective working pressure
– The pressure peak
– The working atmosphere
– The working temperature
