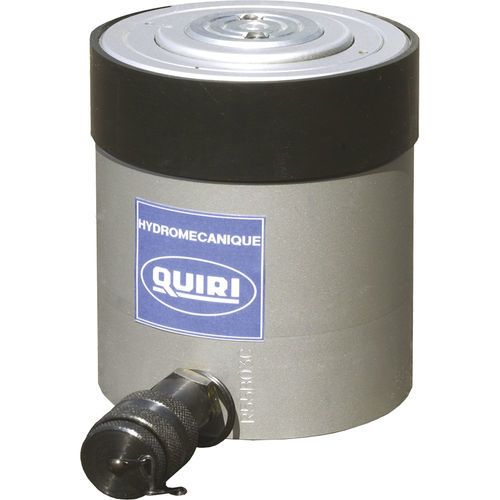

Hydraulic cylinder SER seriespistonsingle-actingindustrial
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- single-acting
- Applications
- industrial, for the automotive industry
- Other characteristics
- standard, threaded
- Stroke
Max.: 250 mm
(9.843 in)Min.: 25 mm
(0.984 in)- Pressure
700 bar
(10,152.64 psi)- Force
232.2 kN, 309.1 kN, 549.5 kN, 928.7 kN
Description
• Single acting, spring return
• Collar thread with rubber protection
• Threaded piston end with removable grooved saddle (23 and 31T models)
• Threaded piston end with flat grooved saddle (54 and 93T model)
• 2 base threaded mounting holes
• Salt bath nitriding piston rod
• Fitted in standard with HF 738 coupler
• Cylinders SER 5415, 7515, 935 with carrying handles
• Cylinders SER 9315 with 2 transport eye hooks
