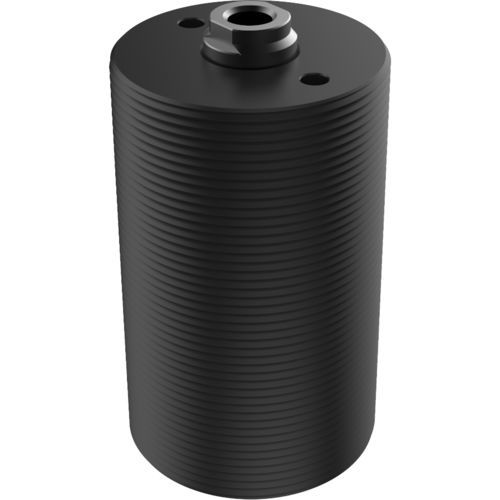

clamping cylinder / hydraulic / single-acting / double-acting clamping cylinder / hydraulic / single-acting / double-acting
{{requestButtons}}

Characteristics

  • Type:

    hydraulic

  • Technology:

    single-acting, double-acting

  • Other characteristics:

    clamping, for the automotive industry

  • Stroke :

    Max.: 100 mm (3.937 in)

    Min.: 10 mm (0.394 in)

  • Force:

    Max.: 130 kN

    Min.: 3 kN

Description

Single or double acting, the linear cylinder is mainly used for holding a workpiece against its isostatic references before sarting the clamping process. This range can also be used for internal movements in plastic injection molds.
There is a wide variety of mounting solutions:

Cartridge
Screw-in
Screw or nut fixing
Under a maximal pressure of 350 bar, the force range is from 3 to130 kN.

The standards strokes are between 10 to 100 mm.
