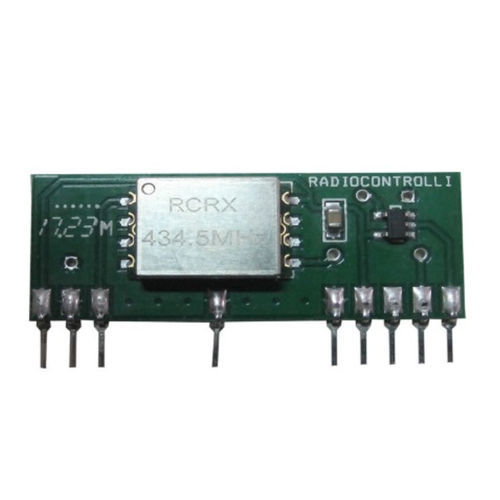

AM receiver module RCBRX-434.5

ASKOOK

AM superhet Receiver Module with PLL synthesizer and crystal oscillator. ASK/OOK modulation. Metal shield. Standard European pin out. - Technical Characteristics - Supply Voltage: 4.4 to 5.0 Volt - Current Consumption (RX Mode): 5.5 to 6.0 mA - Current Consumption Shut Down Mode: up to 1 µA - Frequency: 434.50 MHz - RF Sensitivity: -108 dBm - Max Data Rate: 10 kbit/s - RF Bandwidth 3dB: 600 KHz - Operating Temperature Range: -20 to 80 °C - Pin Configuration - 1: VCC - Vcc - 2: GND - Ground - 3: IN - Antenna - 7: GND - Ground - 11: GND - Ground - 12: VCC - Vcc - 13: ------ - Not Used - 14: OUT - Data Out - 15: EN - Enable - Features - AM superhet receiver module - PLL synthesizer and crystal oscillator - ASK/OOK modulation - Metal shield - Standard European pin out - Frequency: 434.50 MHz - Supply Voltage: 4.4V to 5.0V - Current Consumption (RX Mode): 5.5-6.0 mA - Current Consumption (Shut Down Mode): up to 1 µA - RF Sensitivity: -108 dBm - Max Data Rate: 10 kbit/s - RF Bandwidth 3dB: 600 KHz - Operating Temperature Range: -20°C to 80°C
