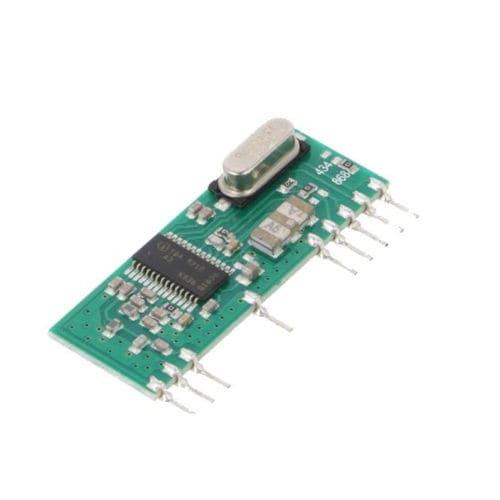

AM receiver module RCASK2-868

OOKASK

AM superhet Receiver Module with PLL synthesizer and crystal oscillator. ASK/OOK modulation. Standard European pin out. - Technical Characteristics: - Supply Voltage: 4.5 to 5.5 Volt - Current Consumption (RX Mode): 5.0 to 6.0 mA - Current Consumption Shut Down Mode: up to 100 nA - Frequency: 868.35 MHz - RF Sensitivity: -103 dBm - Max Data Rate: 4.8 kbit/s - RF Bandwidth 3dB: 300 KHz - Level of emitted spectrum: up to -70 dBm - Power Up Time from Power to stable data: 8 msec - Power Up Time from PD to stable data: 5 msec - Operating Temperature Range: -20°C to 80°C - Pin Configuration: - 1: VCC (Vcc) - 2: GND (Ground) - 3: IN (Antenna) - 7: GND (Ground) - 11: GND (Ground) - 12: VCC (Vcc) - 13: TP/RSSI (Test point / RSSI) - 14: OUT (Data Out) - 15: EN (Enable) - Features: - AM superhet receiver module with PLL synthesizer and crystal oscillator - ASK/OOK modulation - Standard European pin out - Frequency: 868.35 MHz - Supply Voltage: 4.5V to 5.5V - Current Consumption (RX Mode): 5.0-6.0 mA - Current Consumption Shut Down Mode: up to 100 nA - RF Sensitivity: -103 dBm - Max Data Rate: 4.8 kbit/s - RF Bandwidth 3dB: 300 KHz - Level of emitted spectrum: up to -70 dBm - Operating Temperature Range: -20°C to 80°C
