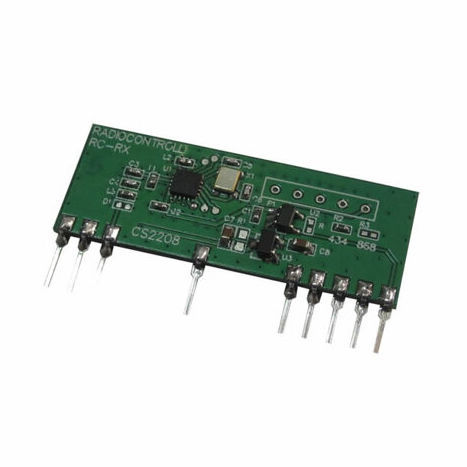

Wireless receiver module RC-RXASK-433-LP

radioOOKfor sensors

433.92 MHz ultra-low-power OOK (On-Off Keying) RF receiver module designed for battery-powered remote controls and wireless sensor nodes. The module uses a duty-cycled receive architecture to minimize average current consumption while preserving high RF sensitivity and stable operation.

Duty-Cycle Receive Operation

• Receiver alternates between sleep and RX active windows to reduce power draw.
• Default configuration: Sleep time 1000 ms; RX window 20 ms.
• Resulting average current: 75 µA (typical).
• Custom duty-cycle settings available on request for specific application profiles.

Module information

• Type: Ultra-low-power OOK receiver module for the 433.92 MHz ISM band.
• Intended for: battery-powered remote controls, wireless sensor nodes and low-duty telemetry links.

Technical characteristics

• Supply voltage: min 1.8 V — typ 3.0 V — max 3.6 V
• Average current consumption (typ): 75.0 µA
• Supply current (RX mode, typ): 3.8 mA
• Supply current (Sleep mode, typ): 500 nA
• Supply current (Shut-down mode, typ): 100 nA
• Frequency (typ): 433.92 MHz
• Max data rate: 4.8 Kbit/s
• RF sensitivity (typ): -108 dBm
• 3 dB bandwidth: ±250 KHz
• Level of emitted spectrum (typ): 70 dBm
• Operating temperature range: -20 °C to 75 °C

Pinout

• Pin 1 — VCC: VCC power
• Pin 2 — GND: Ground
• Pin 3 — IN: Antenna
• Pin 7 — GND: Ground
• Pin 11 — GND: Ground
• Pin 12 — NC: Not connected
• Pin 13 — NC: Not connected
• Pin 14 — OUT: Data out
• Pin 15 — PD: Power down
