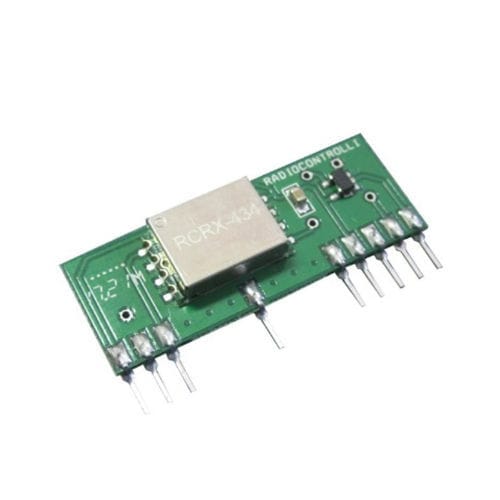

AM receiver module RCBRX-434-3V

compact433 MHz

Superheterodyne receiver with AM modulation. Equipped with quartz oscillator and squelch circuit. With metal shield. Standard European pinout. 3 Volt Version. Technical Characteristics - Supply Voltage: Min 3.0, Max 3.6 Volt - Current Consumption (RX Mode): Typ 5.5 mA - Current Consumption (Shut Down Mode): Max 1 µA - Frequency: Typ 433.92 MHz - Max Data Rate: Max 10 kbit/s - RF Sensitivity: Typ -108 dBm - RF Bandwidth 3dB: Typ 600 KHz - Temperature Range: Min -20, Max 80 °C Pin Configuration - Pin 1: VCC - Vcc - Pin 2: GND - Ground - Pin 3: IN - Data In - Pin 7: GND - Ground - Pin 11: GND - Ground - Pin 12: VCC - Vcc - Pin 13: ----- - Not used - Pin 14: OUT - Data Out - Pin 15: EN - Enable Features - Superheterodyne AM receiver - 433.92 MHz frequency - 3V supply voltage - Metal shield - Standard European pinout - Current consumption (RX): 5.5 mA - Current consumption (Shut Down): 1 µA - Max data rate: 10 kbit/s - RF sensitivity: -108 dBm - RF bandwidth: 600 KHz - Operating temperature: -20°C to 80°C
