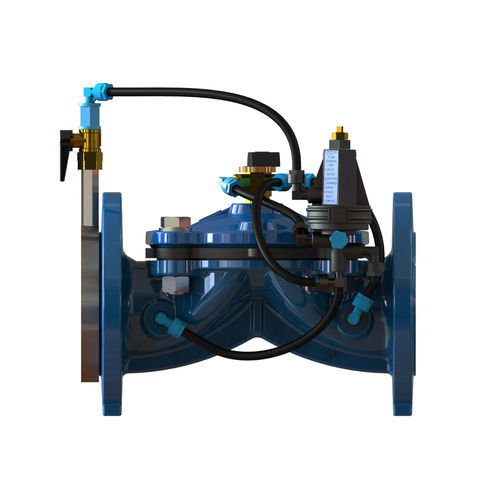

Diaphragm valve RAF 7Rhydraulically-operatedfor controlpilot
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- hydraulically-operated
- Function
- for control, pilot
- Media
- for water
- Body
- threaded
- Number of channels
- 3-way
- DN
Max.: 150 mm
(5.906 in)Min.: 25 mm
(0.984 in)- Pressure
10 bar
(145 psi)- Temperature
70 °C
(158 °F)
Description
The RAF 7R flow rate control valve is line pressure hydraulically actuated, 3-W plastic pilot. Normally the valve is partly open to allow constante flow rate. The head loss across the orifice is proportional to the flow rate.
The RAF 7R maintains a maximum preset flow rate, as set on the 3-W flow rate pilot, and calibrated orifice regardless of pressure changes.
The 3-W pilot configuration together with Raphael’s patented diaphragm enables smooth and precise flow rate control.
