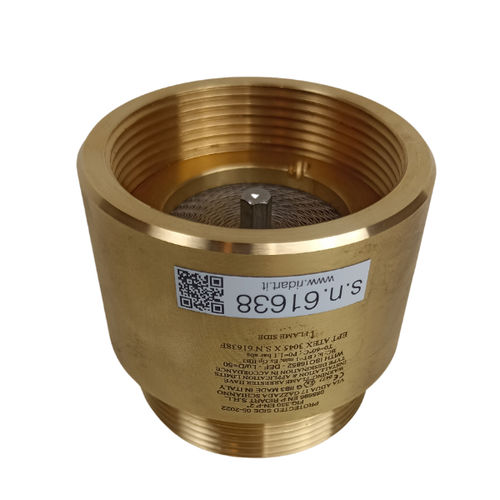

Flame arrester 330 EN P

THE in-line deflagration flame arrester RIDART HAS a compact design SUITABLE for vertical and horizzontal easy installation. The deflagration flame arrester is symmetrical and offers secure flame protection. The device consists of the housing , support and ribbon coil unit in the center. Specifying the operating conditions, such as the temperature, pressure, explosion group, and the composition of the fluid, enables RIDART to select the best deflagration flame arrester for your application. Type-approved in accordance with the current ATEX Directive and EN ISO 16852, as well as other international standards. Features: Brass o stainless Steel body Flanged version on demand Less maintenance Easier cleaning Vertical and Horizontal installation Used for hydrocarbons or chemical pipeline. Stage I vapor recovery compliant. The Flame Arrester avoids propagation of fire into the piping. Surface Protection System is for ail ATEX zone (0,1 and 2). ISO 16852:2016 CERTIFIED. The best performances allowed by the new régulation. - Max distance from the potential igniction is 50 pipe's diameter. - Max operational pressure (relative) is 0,1 bar. During the tank filling, the free vent discharge vapours that may ignite due to atmospheric or accidental causes. The tank shall be protected to prevent the propagation of flames into the container. This is the purpose of our Flame Arrester for in line deflagration. Inside there are two ribbon coiled elements certified in stainless steel, which allow the dissipation of flames.
