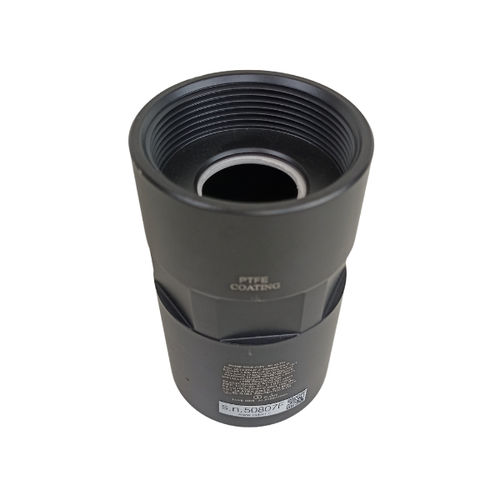

It’s a Protection System with ribbon coil: déflagration in-line flame arrester
in according with Directive 2014/34/EU and harmonized standard EN ISO
16852:2016.
- Used for hydrocarbons or chemical pipeline.
- Stage II vapor recovery compilant.
- The Flame Arrester avoids propagation of fire into the piping.
- Surface Protection System is for all ATEX zone (0,1 and 2).
The best performances allowed by the new régulation:
- Max distance from the potential igniction is 50 pipe's diameter.
Inflammable gases and vapours classification is necessary to correct use of flame arrester. UE-Type Examination Certificate EPT 18 ATEX 3053 X
is for Explosion Group “IIB3” tested with Ethylene and compatible for all gas with MESG > 0.65 mm for example: Ammonia, Industrial methane,
Blas-furnace gas, Carbon monoxide, Propane, Butane, Pentane, Esane, Eptane, Iso-octane, Decane, Benzene, Xilene, Cyclohexane, Acetone, Ethyl-
methyl-ketone, Methyl acetate, Ethyl acetate, Normal propyl acetate, Normal butyl acetate, Amyl acetate, Cloroethylene, Methanol, Ethanol, Iso
Butanol, Normal Butanol, Amyl alcohol and Ethyl nitrite. Use only for gas or vapor with MESG > 0.65 mm.
Burning rating BC=b, tBT=1 min. Max operational temperature 60°C.
- Standard model is for traditional fuel without additives.
ON REQUEST:
- “PTFE” model is for spécial fuel, non-aggresive solvents or chemical products.
- “SS” model is for aggressive solvents, ac ids or bases.
