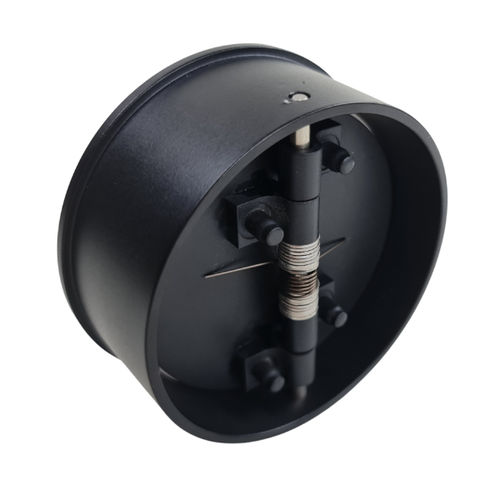

Vapor safety valve 93 seriesfor gasfor tankstainless steel
Add to favorites
Compare this product
Characteristics
- Fluid
- for gas
- Applications
- for tank
- Body material
- stainless steel, aluminum
- Valve plug seal material
- PTFE
- Other characteristics
- plug, stainless steel, automatic, aluminum, vapor
- DN
3 in, 4 in
- Pressure
Min.: 0 bar
(0 psi)Max.: 8 bar
(116 psi)
Description
It's a Safety valve in according with Directives ATEX 20K/34/EU. Technical Norm Fire Prevention 41/256 31/10/2019. d.P.R. 10/520 19/03/1955 and subsequent amendments.
Vapor Stop is used to prevent any possible vapors exposure after the cap opening while a liquid
drawing operation is in progress.
Vapor stop can be used in different fields of application (petrochemical. food. pharmac eutical
& more).
- Valve opens and closes automatically.
- No vapor leakage
- Fast hose emptying (les than 30 seconds)
- Standard model is for traditional fuel without additives.
ON REQUEST:
-"PTFE" coated model is for special fuel, non-aggresive solvents or chemical products.
-“SS" model is for aggressive solvents. ac ids or bases.
