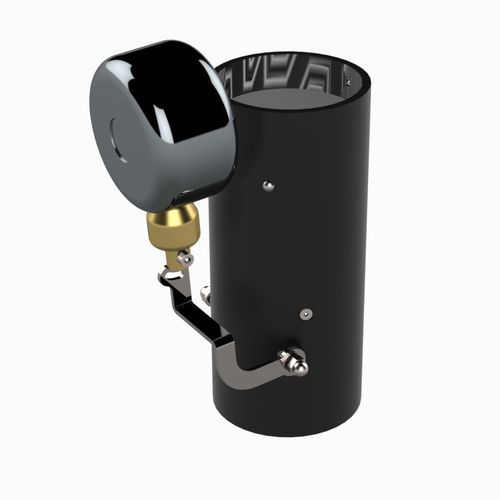

Overfill prevention valve 442Splugfor chemical productsfor hydrocarbons
Add to favorites
Compare this product
Characteristics
- Type
- plug
- Function
- overfill prevention
- Media
- for chemical products, for hydrocarbons, diesel, for gasoline
- Body
- PTFE-lined, aluminum
- Applications
- chemical, for the food industry, liquids, for the petroleum industry, for the pharmaceutical industry, for tank
- Fluid specification
- for aggressive media, for flammable fluids
- Associated function
- for filling applications
- Other characteristics
- ISO, automatic, vertical, for hazardous environments, ATEX, for hazardous fluids
- DN
3 in
- Pressure
Max.: 8,000 mbar
(116 psi)Min.: 230 mbar
(3.3 psi)- Temperature
Max.: 40 °C
(104 °F)60 °C
(140 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 1,000 l/min
(264.17 us gal/min)Min.: 30 l/min
(7.93 us gal/min)
Description
It's a Safety Device in according with Directives ATEX 2014/34/EU. ISO EN 13616-1, Technical Norm Fire Prévention 41/256 31/10/2019. d P.R. 10/520 19/03/1955 and subseguent amendments.
Valve is used to prevent any possible overfill during charging hazardous or dangerous fluids.
- - Application: petroc hernie al. food. pharmac eutic al & more.
- - Vaive opens and closes automatically.
- - No residual liquid in pipe at the end of loading process.
- - The operator cannot leave the pump during the refuellinq process.
* Flow and Turbolence should modify initial and final closure level by ±20%.
The best performanc es allowed by the new régulation:
- - Loading proc ess needs operator supervisor.
CHEMICAL SUITABILITY
- Standard model is for traditional fuel without additives.
-“PTFE” coated model is for spécial fuel, non-aggresive solvents or chemical
products.
-“SS” model is for aggressive solvents, acids or bases.
FUTURES_
. Pumped filling
. Two stage positive shut-off
. Remote or direct filling
. No risk of fire or fuel leaking
. Easy installation
