Crash protection guard GuardRite® Steel

Overview

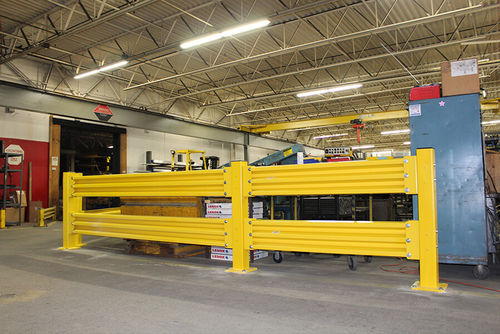

The GuardRite® steel safety barrier provides rigid, in-plant protection to separate pedestrians, safeguard equipment and deflect vehicle impacts in warehouses and industrial facilities.

Key highlights

• Heavy-duty steel construction
• Available as single-rail (23" / 580 mm) or double-rail (44" / 1120 mm)
• Impact-rated: typical configurations include 10,000 lb (4,500 kg) @ 4 mph and heavy-duty options up to 30,000 lb (13,636 kg) @ 2.5 mph
• Standard 10 ft (3.05 m) lengths cut to specification

Benefits

• Protection: Mitigates damage from forklifts and industrial vehicles to equipment, infrastructure and personnel.
• Installation: Bolt‑together components and base‑plate anchors allow fast installation without disrupting operations.
• Durability: Steel construction maintains integrity in high-traffic, heavy-use environments.

Safety
GuardRite® barriers are engineered to remain in place under impact to protect workers, machinery and building structures.

• Defense: Reduces risk of vehicle intrusion into pedestrian or sensitive equipment zones.
• Separation: Clearly delineates walkways, workstations and conveyor/pallet areas.
• Uptime: Helps prevent costly unplanned downtime and repairs.

Design & performance
Simple bolt‑together design allows rapid deployment; rail profile and post design provide predictable energy absorption for repeated impacts without major disruption to operations.

Product applications
Ideal where rigid, visible protection is required, including:

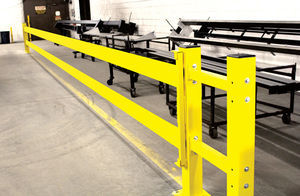

• Walkway and pedestrian segregation
• Conveyor line separation
• Loading-dock workstation protection
• Equipment and panel protection (electrical, HVAC, etc.)

Typical industries

• Warehousing and distribution
• Cold storage
• Manufacturing and production facilities
• Automotive plants
• Food & beverage processing
• Pulp, paper and packaging

Technical specifications

• Impact rating: Available configurations include 10,000 lb (4,500 kg) @ 4 mph (6.5 km/h) and heavy-duty option up to 30,000 lb (13,636 kg) @ 2.5 mph (4 km/h).
• Rail profile: 11.8" (300 mm) high, 3" (75 mm) deep rails, 0.125" (3.175 mm) thickness; safety-yellow finish.
• Centerline: Up to 10" (254 mm) centerline available.
• Posts: 5" (125 mm) square posts, 0.1875" (4.8 mm) wall thickness; base plate 10" x 10" (255 x 255 mm) x 0.625" (16 mm) thick.
• Anchors: Four 0.75" (20 mm) x 7" (178 mm) concrete anchors supplied per post.
• System heights: Single-rail 23" (580 mm); double-rail 44" (1120 mm).
• Standard lengths: 10 ft (3.05 m) sections cut to specification for installation convenience.
