Safety gates system RacKeeper®

Overview
RacKeeper® is a rack-supported mezzanine safety gate designed to provide continuous edge protection for elevated work areas such as multilevel pick modules and mezzanines. The system enables safe transfer of goods between the mezzanine and the floor while preventing unguarded openings.

Key benefits

• Full-time coverage. Dual reciprocating barrier ensures one gate is always closed.
• Access. Goods remain accessible from both mezzanine and floor without compromising fall protection.
• Compliance. Engineered to meet applicable OSHA, ANSI and IBC standards for elevated work surfaces.
• Smooth operation. Track-and-roller design eliminates chains and cables for reliable reciprocating movement.

Safety and compliance

• OSHA. Meets OSHA 1910.28(b)(1) for walking-working surfaces 4'0" (1200 mm) or more above a lower level; supports toeboard use per OSHA 1910.29(k)(1).
• ANSI. Complies with ANSI requirements preventing unguarded openings on elevated surfaces.
• IBC. Conforms to IBC 1015.2 for guard location and height on open-sided walking surfaces.

Design & operation

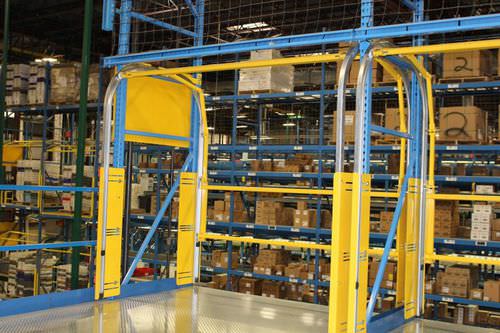

RacKeeper® installs within existing pallet racking to create a controlled access zone. Inner and outer gates are mechanically linked so they cannot both be open simultaneously, preventing exposure of the leading edge. The system runs on a 3" (75 mm) track with nylon rollers for smooth reciprocating motion and requires no chains or cables.

Applications

• Multi-level racking systems
• Mezzanines and elevated platforms
• Elevated pallet drop areas
• Perimeter walls or racking where continuous edge protection is required

Features / technical specifications

• 3" (75 mm) track with nylon rollers for smooth operation (no chains or cables)
• 10-gauge powder-coated yellow steel frame
• Available rail heights: 21" (535 mm) and 42" (1065 mm)
• Optional toeboard to prevent material from falling to lower levels
• Fits rack openings from 4'0" to 13'6" wide, 5'0" to 9'0" high and 3'0" to 8'6" deep
• Unique link bar ensures inner and outer gates operate in unison
• Mounting brackets for full-time track protection and installation flexibility
• Steel side frames for integrated track protection
• Angle brackets available for bolting to the front of uprights
