Motorized valve actuator CMQ

manualquarter-turnpart-turn

Description

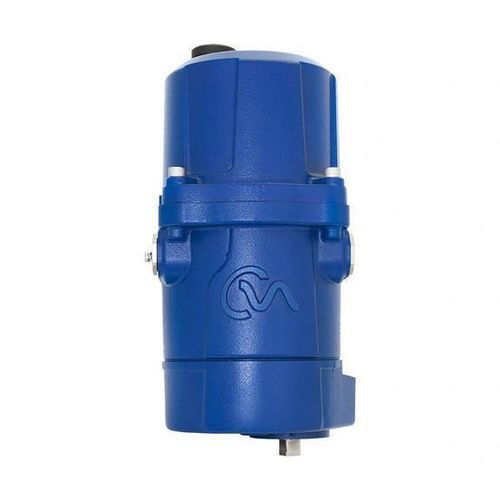

CMQ part-turn output compact modulating actuators provide an all-electric solution for control valve and pump applications. They deliver precise, repeatable position control and continuous modulation with accuracy up to 0.1%. Units are certified explosionproof to international standards and can be supplied with optional integral local controls and a Reserve Power Pack for fail-to-position capability.

Features

• Part-turn output drive with seating torque up to 124 Nm (1,100 lbf.in)
• High-torque quarter-turn option using CMR-250 with GBX spur gearbox
• Precise, repeatable position control using 4–20 mA command with up to 0.1% accuracy
• Explosionproof certification to international standards
• Adjustable speed control
• Manual override standard
• Electronic torque limiting
• Two standard adjustable position switches
• Suitable for mounting in any orientation
• Permanently lubricated, maintenance-free drive train
• Wide standard ambient temperature range −30 to 70 °C (−22 to 158 °F) with low-temperature option available
• Brushless DC motor for reliable, accurate continuous modulation
• Encoder technology for contactless feedback
• Less than 1 watt standby power
• Suitable for single-phase or DC power supplies
• Field-selectable adjustments: deadband; zero and span; command signal type; standard or reverse acting; manual/auto operation; output shaft position on loss of signal
• Built-in interface for quick setup via six-segment LCD and push buttons
• Optional integral local controls with LCD positional display
• Optional Reserve Power Pack (supercapacitors) for fail-to-position functionality
• Compatible with a wide range of fieldbus, hardwired and analogue site systems
• Fieldbus options include HART®, Foundation Fieldbus®, Profibus®, Pakscan™, RIRO, DeviceNet® and Modbus®

Options & Additional Information

• Optional integral local controls with LCD positional display
• Optional Reserve Power Pack (supercapacitors) for fail-to-position functionality
• Compatibility with multiple fieldbus and analogue systems for system integration

Technical specifications

• Output type: part-turn (quarter-turn) drive
• Maximum seating torque: up to 124 Nm (1,100 lbf.in)
• Position control accuracy: up to 0.1%
• Control signal: 4–20 mA analogue input (among supported command types)
• Motor: brushless DC motor for continuous modulation
• Feedback: encoder (contactless)
• Standby power: < 1 W
• Power supply: suitable for single-phase or DC supplies
• Ambient temperature range: standard −30 to 70 °C (−22 to 158 °F); low-temperature option available
• Protection/certification: explosionproof certified to international standards
• Drive train: permanently lubricated, maintenance-free
• Manual override: standard
• Speed control: adjustable
• Torque protection: electronic torque limiting
• Switches: two adjustable position switches (standard)
• Interface: six-segment LCD display with push buttons for configuration
• Fieldbus options: HART®, Foundation Fieldbus®, Profibus®, Pakscan™, RIRO, DeviceNet®, Modbus®
