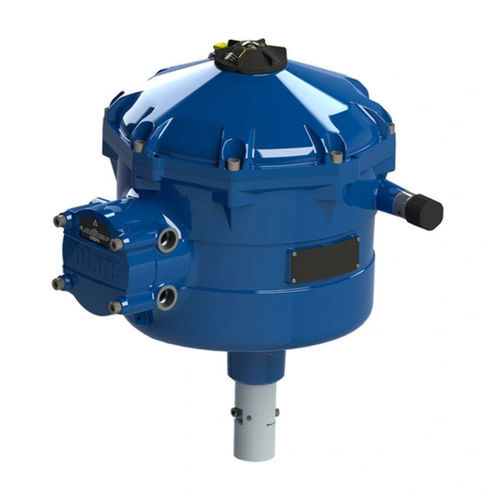

Electric valve actuator CVL series

manualquarter-turnlinear

CVL linear actuators offer a compact, electrically powered process control operator that is suitable for precision, unrestricted modulation of most control valve types and sizes. The CVA range comes with watertight and explosionproof enclosures and has ultra-low energy consumption, making it suitable for solar-powered applications in remote locations. Features • Linear output drive control valve actuators • On-board data logger included as standard • Double-sealed enclosure provides protection in the most demanding environments • Bluetooth® wireless compatible for local setup / control and diagnostics • Digital communication options including HART®, Foundation Fieldbus®, Profibus®, Pakscan™, Modbus® and RIRO available • Direct thrust measurement for protection and monitoring • Scalable control input characterisation • Configurable fail-to-position option using supercapacitor technology • Optional Intrinsically Safe (IS) control inputs and feedback outputs • Continuous unrestricted modulation duty – S9 • Optional manual override
