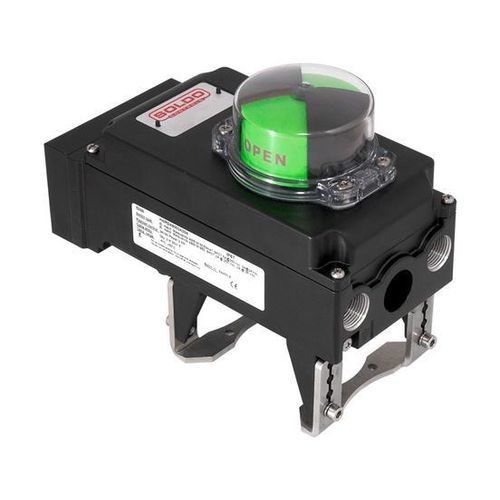

VDI/VDE 3845 limit switch box HW

with integrated solenoid valvewith aluminum housingcompact

Overview
Control unit that combines a limit switch box and solenoid valve into a single device. The HW series provides visual and electrical remote position feedback and, with a solenoid valve integrated into the housing, can also operate an automated valve.

Features

• Twin shaft design
• Self-lubricating bushings
• Optional integrated solenoid valve for compactness and efficiency
• Three- or five-way pneumatic valve options with single or double coil configurations
• Aluminium enclosure with thick powder-coat finish and integrated NAMUR mounting kit
• Up to three cable entries (metric or imperial)
• Multiple indicator options
• Easy wiring via terminal PCB
• Optional position transmitter boards
• Optional Profibus communication board for full process handling

Range
SOLDO CONTROLS - Limit Switch Boxes

Technical specifications

• Twin shaft design
• Self-lubricating bushings
• Integrated solenoid valve (optional)
• Three- or five-way pneumatic valve options
• Single or double coil configurations
• Aluminium enclosure with thick powder-coat finish
• Integrated NAMUR mounting kit
• Up to three cable entries (metric or imperial)
• Multiple indicator alternatives
• Terminal PCB for simplified wiring
• Optional position transmitter boards
• Optional Profibus communication board
