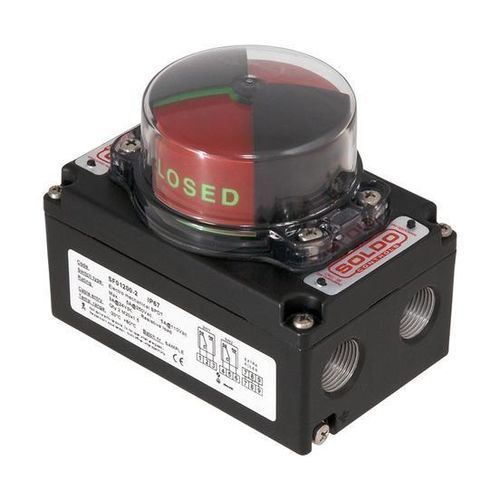

Intrinsically safe limit switch box SF

with aluminum housing

Product overview
Multi-purpose limit switch box for safe area or intrinsically safe (Ex i) applications, providing visual and electrical remote position feedback for automated valves and actuators.

Range / Series
SOLDO CONTROLS - Limit Switch Boxes

Features

• Lower and higher temperature options available on request
• Two cable entries: M20 or 1/2" NPT
• Twin shaft design with the shaft split into two sealed parts for enhanced weather insulation during operation
• Copper-free aluminium housing for superior corrosion resistance
• Easy wiring via terminal PCB board
• NOVA V3™ switch option for high durability and high-power switching
• Optional position transmitter board
• Optional ASI communication protocol board
• Captive bolts on screwed lid
• Self-lubricating bushings
• Multiple indicator options
• Suitable for arctic environments

Applications
Provides both visual and electrical remote position feedback on automated valves and actuators. Suitable for installations in safe areas and for intrinsically safe (Ex i) systems.

Characteristics / Technical specifications

• Temperature options: lower and higher temperature variants available on request
• Cable entries: two entries, M20 or 1/2" NPT
• Shaft design: twin shaft, split into two parts for sealed operation and improved weather insulation
• Housing material: copper-free aluminium for corrosion protection
• Wiring: terminal PCB board for simplified wiring
• Switch option: NOVA V3™ for high durability and high-power switching capabilities
• Transmitter: optional position transmitter board
• Communication: optional ASI communications protocol board
• Lid fastening: captive bolts on screwed lid
• Bushings: self-lubricating
• Indicators: multiple indicator options available
• Environment: suitable for arctic environments
