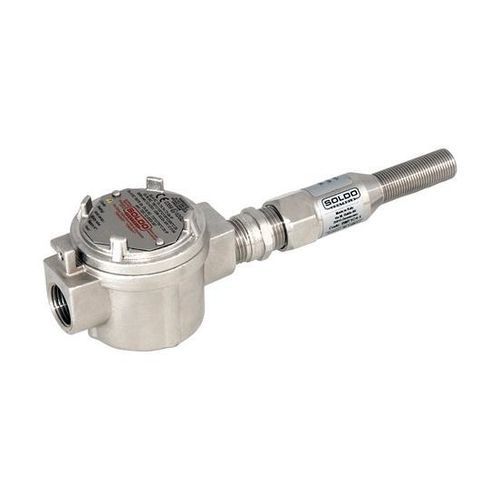

Rotary position sensor TB

linearnon-contactmagnetic

Product overview
The Soldo TB series integrates a BM proximity switch head with an aluminium or AISI 316 stainless steel junction box to enable direct local wiring. Compact and engineered for valve position feedback in harsh or hazardous environments; designed for linear and rotary valves. Subsea capability available on request (tested to 300 bar).

Features

• BM head mounting pattern compatibility for direct installation
• Junction box available in AISI 316 stainless steel or aluminium
• Suitable for hazardous areas with Exd or Exia protection options
• Intended for linear and rotary valve position feedback and general signalling
• Compact position indication for linear valves
• Adaptable mounting and sensing arrangements for multiple applications
• Rugged AISI 316 stainless steel enclosure option
• 450 mm flying leads for local connection
• Magnetic or ferrous target sensing capability
• Subsea version available on request; tested to 300 bar

Technical specifications

• Head mounting pattern: BM compatible
• Junction box mounting: screw bottom mounting system
• Junction box material: AISI 316 stainless steel or aluminium
• Protection methods: Exd or Exia (suitable for hazardous/explosive atmospheres)
• Application: linear and rotary valves, general position feedback
• Enclosure: AISI 316 stainless steel option
• Flying leads length: 450 mm
• Sensing: magnetic or ferrous target capability
• Subsea capability: available on request; tested to 300 bar
