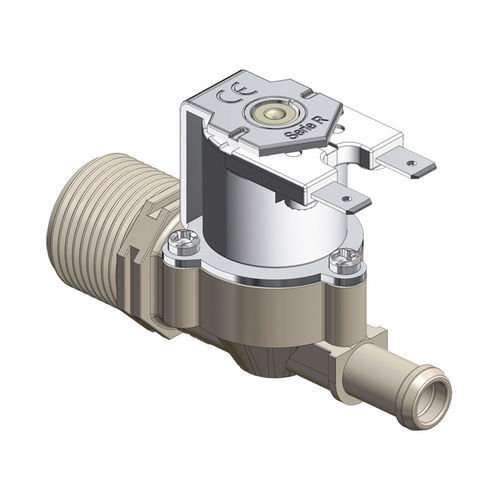

Servo-assisted solenoid valve R series

2-wayNONC

Product overview
R Series Single: 2/2 solenoid valve, dn 10mm, servo-assisted, NC (normally closed), 1 output. Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading.

Installation
In any position - Optional: Plastic or Metal mounting bracket

Applications

• All automatic water control applications.
• Water Inlet Valve: Coffee & Tea, Food Equipment, Ice machines, Household Appliances, Hot Tubs, Water dispensers, Marine Applications, etc.

Physical Specifications

• Valve body: PA 66 - 30% GF
• Diaphragm: NBR; LSR
• Core: Stainless steel
• Coils: F class (155°)
• Assembly: Self-tapping screws

Working specifications

• Working pressure: 0,2 - 10 bar
• Room temperature: Tu 60 °C
• Fluid temperature: Tm 25 °C - Tm 60 °C - ED 100% ; Tm 90 °C (3 min ON - 5 min OFF)
• Orifice: DN 8mm; DN 10mm
• Control: Normally Closed (NC); Normally Open (NO); Latching (LC)
• Fluid direction: Unidirectional
• KV 90°: 21,55 L/min
• KV 180°: 16,96 L/min

Electrical Connections

• Faston 6,3 x 0,8 mm
• Unipolar wires max 5000
• Bipolar wires max 5000

Hydraulic connections
IN:
Male thread 3/4”; Male thread 3/4” GHT; Male thread 1/2"; Quick coupling 1/4"; Quick coupling 6mm; Quick coupling 8mm; Quick coupling 10mm

OUT:
Male thread 3/4”; Male thread 3/4” GHT; Male thread 1/2"; Quick coupling 1/4"; Quick coupling 6mm; Quick coupling 8mm; Quick coupling 10mm

MOQ

• Single 90°: 120 pcs
• Single 180°: 160 pcs

90° Datasheets (table)
Model | IN | OUT | Filter | Regulator IN | Check IN | Restrictor OUT | Check OUT | Bracket | Thread IN 3/4" GHT
R181 | 3/4" M | Hose tail 6.5 mm | ✓ | ✓ | ✓ |   |   | ✓ |
R151 | 3/4" M | Hose tail 10 mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
R152 | 3/4" M | Hose tail 13 mm (DN 8 mm) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
R155 | 3/4" M | Hose tail 13 mm (DN 10 mm) | ✓ | ✓ | ✓ |   |   | ✓ |
R190 | 3/4" M | 3/8"M | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
R161 | 3/4" M | Spigot 10 mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
R183 | 3/4" M | Quick connection JG 6 mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
R189 | 3/4" M | Quick connection JG 8 mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
R180 | 3/4" M | Quick connection JG 10 mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
R185 | 3/4" M | Quick connection JG 12 mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |

180° Datasheets (table)
Model | IN | OUT | Filter | Regulator IN | Check Valve IN | Restrictor OUT | Check valve OUT | Bracket | Thread IN 3/4" GHT
R153 | 3/4" M | Hose tail 10 mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
R153 GHT | 3/4" M GHT | Hose tail 10 mm | ✓ | ✓ |   | ✓ | ✓ | ✓ | ✓
R154 | 3/4" M | Hose tail 13 mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓
R156 | 3/4" M | 1/4" M | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓
R157 | 3/4" M | 3/4" M | ✓ | ✓ | ✓ |   |   | ✓ | ✓
R158 | 3/4" M | Spigot 10 mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓
R162 | 3/4" M | Quick connection 1/4" | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓
R173 | 3/4" M GHT | Quick connection 1/4" | ✓ | ✓ |   | ✓ | ✓ | ✓ | ✓
R163 | 3/4" M | Quick connection 6 mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓
R159 | 3/4" M | Quick connection 8 mm | ✓ |   | ✓ | ✓ | ✓ | ✓ | ✓
R160 | 3/4" M | Quick connection 10 mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓
R164 | 3/4" M | Quick connection 12 mm | ✓ | ✓ | ✓ |   |   | ✓ | ✓

Additional Models Datasheets (table)
Model | IN | OUT | Filter | Regulator IN | Check IN | Restrictor OUT | Check OUT | Bracket | Thread IN 3/4" GHT | Note
90° R191 | 1/2" M | 1/2" M |   |   |   | ✓ | ✓ | ✓ |
180° R179 | 3/8" M | Ø 6mm Spigot | ✓ |   | ✓ |   |   | ✓ |   | double INLET check valve
180° R193 | Quick Connection 6 mm | 3/8" M |   |   | ✓ | ✓ | ✓ |   |   |
180° R165 | Quick Connection 8 mm | Quick Connection 10 mm |   |   | ✓ | ✓ | ✓ |   |   |
180° R178 | Quick Connection 10 mm | Quick Connection 6 mm |   |   | ✓ | ✓ | ✓ |   |   |
180° R174 | Quick Connection 10 mm | Quick Connection 8mm |   |   | ✓ | ✓ | ✓ |   |   |

Caractéristiques / spécifications techniques

• Type: 2/2 solenoid valve, servo-assisted
• Nom commercial / modèle: R Series Single
• Orifice / DN: DN 8 mm; DN 10 mm
• Materials: body PA66-30%GF, diaphragm NBR/LSR, core stainless steel
• Coil class: F (155 °C)
• Working pressure range: 0.2 - 10 bar
• Fluid temperature rating: up to 60 °C continuous; intermittent up to 90 °C (3 min ON - 5 min OFF)
• Electrical connection options: Faston 6.3x0.8 mm, unipolar/bipolar wires
• Hydraulic connection options: multiple threads and quick couplings (3/4", 1/2", 1/4", 6/8/10/13mm quick couplings, GHT variants)
• Control options: NC (Normally Closed), NO (Normally Open), Latching (LC)
• Flow coefficients: KV 90° = 21.55 L/min; KV 180° = 16.96 L/min
• MOQ: 90° version 120 pcs; 180° version 160 pcs
