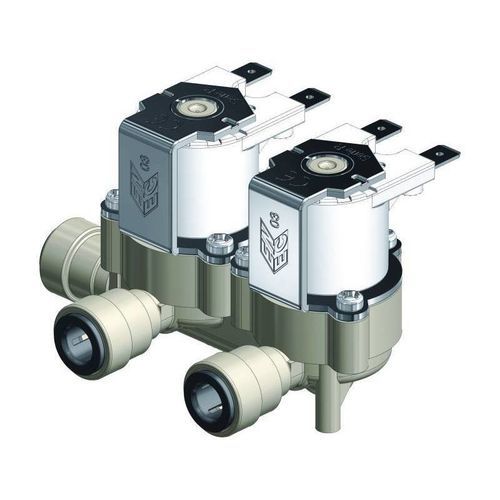

Servo-assisted solenoid valve 237

2/2-wayNONC

Product description
R Series Dispenser: 2/2 solenoid valve, DN 10 mm, servo-assisted, normally closed (NC) configuration by default; 2 inlets and 1 outlet. Designed for use with drinking water. Also available with direct drive, normally open (NO) and latching (LC) variants.

Installation

• Installable in any position using fixing screws for secure mounting

Applications

• Sparkling and mineral water dispensers
• Professional water filtration equipment
• Ice-making machines
• Coffee and beverage machines

Physical characteristics

• Valve body: PA 66 - 30% GF
• Diaphragm options: NBR, LSR, EPDM
• Core: Stainless steel
• Coils: Thermal class F (155 °C)
• Assembly: Self-tapping screws

Working specifications

• Working pressure: 0.2 - 10 bar
• Ambient temperature: up to 60 °C
• Fluid temperature: continuous up to 60 °C (ED 100%); intermittent up to 90 °C (3 ON - 5 OFF)
• Orifice: DN 10 mm
• Control options: Normally Closed (NC); Normally Open (NO); Latching (LC)
• Fluid direction: Unidirectional
• Kv (flow coefficient): 7.39 L/min

Electrical connections

• Faston 6.3 x 0.8 mm

MOQ

• 36 pcs

Datasheets 2 IN 1 OUT
Model — IN — OUT — Nominal orifice — M.O.Q. — Filter — Regulator — Check valve — Restrictor
237 — 1/4" — 1/4" — 10 mm — 36 — - — - — - — -
237 — 6 mm — 6 mm — 10 mm — 36 — - — - — - — -
237 — 8 mm — 8 mm — 10 mm — 36 — - — - — - — -
236 — M10x1 — 1/4" M — 10 mm — 36 — - — - — - — -

Additional information
Presentation (PDF) and additional technical drawings/schematics available on request.

Technical characteristics / specifications

• Type: 2/2 solenoid valve, servo-assisted
• Series: R Series Dispenser
• Configuration: 2 inlets, 1 outlet (2 IN 1 OUT)
• Nominal orifice: DN 10 mm
• Suitable fluid: Drinking water
• Valve body material: PA 66 - 30% GF
• Diaphragm materials: NBR, LSR, EPDM
• Core material: Stainless steel
• Coil insulation class: F (155 °C)
• Working pressure range: 0.2 - 10 bar
• Fluid temperature range: up to 60 °C continuous; up to 90 °C intermittent (3 ON - 5 OFF)
• Kv: 7.39 L/min
• Electrical connection: Faston 6.3 x 0.8 mm
• Packaging: 36 pcs per box
