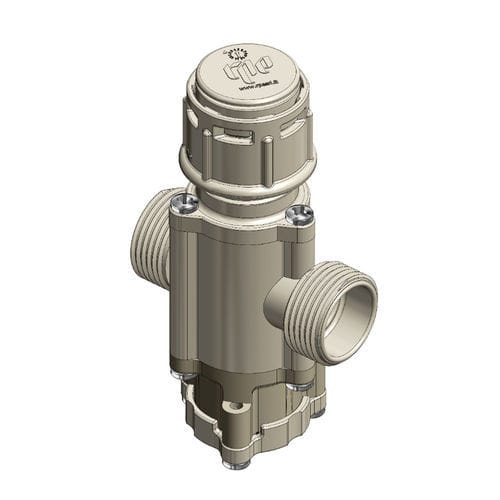

Servo-assisted solenoid valve R Dual 004

2-wayNONC

Product name
R Series Dual 004

Physical characteristic

• Valve body: PA 66 - 30% glass fiber (GF)

Working specifications

• Working pressure: 0.2 - 10 bar
• Room temperature (Tu): up to 60° C
• Fluid temperature (Tm): 25° C (indicative)
• Control options: Normally closed (NC), Normally open (NO), Latching (LC)
• Fluid direction: Unidirectional

Electrical connections

• Faston 6.3 x 0.8 mm
• Unipolar wires max length: 5000 mm
• Bipolar wires max length: 5000 mm

Hydraulic connections

• Inlet: 3/4" male thread
• Outlet: 3/4" male thread

Pilot

• Diaphragm materials: NBR; LSR; EPDM
• Core: Stainless steel
• Coils: Class F (155° C)
• Assembly: Self-tapping screws

Flow meter

• Flow meter body: POM
• Assembly: Self-tapping screws

Pressure Restrictor

• Restrictor body: PA 66 - 30% glass fiber
• Restrictor cap: PA 66 - 30% glass fiber
• Gasket: Silicone
• Diaphragm: EPDM + textile
• Core: POM
• Blocking particulars: PA 66 - 30% glass fiber

Filter

• Filter body: PA 66 - 30% glass fiber
• Filter cap: PA 66 - 30% glass fiber
• Gasket: Silicone
• O-Ring: NBR; LSR
• Filter mesh: Stainless steel
• Filter orifice: ND 10 mm

Datasheets (compatibility table)
Header: PILOT | PRESSURE RESTRICTOR | FLOW METER | FILTER
PILOT → | NOT POSSIBLE | NOT POSSIBLE | YES | NO SENSE
PRESSURE RESTRICTOR → | NOT POSSIBLE | NOT POSSIBLE | YES | YES
FLOW METER → | Technical sheet (flow meter) | YES | NO SENSE | NO SENSE
FILTER → | YES | Technical sheet (pressure restrictor/filter) | YES | YES


Technical additional data sheet (connection / module compatibility)
Header: Connection | Flow regulator | Flow restrictor | Filter | Check valve
IN | 3/4" M | NO | NO | NO | NO
OUT | 3/4" M | NO | NO | NO | NO


Additional product images
Several product detail images available (filter views, IN/OUT views, series functions).


Technical characteristics / specifications

• Product: R Series Dual 004
• Valve body material: PA 66 - 30% glass fiber
• Working pressure range: 0.2 - 10 bar
• Operating (room) temperature up to: 60° C
• Fluid temperature indicated: 25° C
• Control options: NC, NO, Latching
• Fluid direction: Unidirectional
• Electrical connections: Faston 6.3 x 0.8 mm; unipolar/bipolar wires up to 5000 mm
• Hydraulic connections: Inlet/Outlet 3/4" male thread
• Pilot diaphragm options: NBR, LSR, EPDM; core stainless steel; coils Class F (155° C)
• Flow meter body material: POM
• Pressure restrictor materials: PA 66 - 30% glass fiber; gasket silicone; diaphragm EPDM + textile; core POM
• Filter materials: PA 66 - 30% glass fiber body and cap; gasket silicone; O-ring NBR/LSR; stainless steel mesh; orifice ND 10 mm
