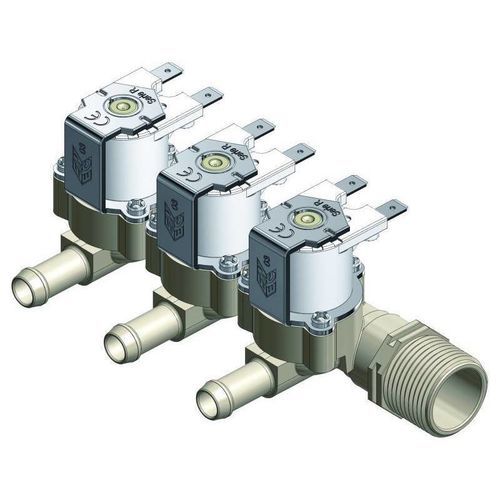

Servo-assisted solenoid valve RM series

2/2-wayNONC

Product overview
Modular R Series: 2/2 servo-assisted solenoid valve, DN 11 mm, normally closed (NC). Single inlet with multiple outlets (PG10 mm). Suitable for potable water. Also available with direct drive and in normally open (NO) and latching versions.

Installation
Installable in any orientation. Optional fixing bracket in plastic or metal for secure mounting.

Applications

• Hydromassage tubs
• Multifunction hydromassage showers
• Water dispensers
• Irrigation systems for verandas and gardens
• Industrial furnaces

Physical specifications
Valve body: PA 66 - 30% glass fibre
Diaphragms: NBR; LSR; EPDM
Core: Stainless steel
Coils: Class F (155 °C)
Assembly: Self-tapping screws for service access

Working specifications
Working pressure: 0.2 - 10 bar
Ambient temperature: up to 60 °C
Fluid temperature: 25 °C - 60 °C (ED 100%); intermittent up to 90 °C (3 ON - 5 OFF)
Orifice: DN 11 mm
Control options: Normally Closed (NC); Normally Open (NO); Latching
Flow direction: Unidirectional
KV (1 outlet): 20.74 L/min

Electrical connections

• Faston 6.3 x 0.8 mm
• Unipolar wires up to 5000 mm
• Bipolar wires up to 5000 mm

MOQ
Mod. RM 1100 - 120 pcs
Mod. RM 1200 - 80 pcs
Mod. RM 1300 - 40 pcs
Mod. RM 1400 - 24 pcs
Mod. RM 1700 - 24 pcs

Datasheets
Model, IN, OUT, Orifice, M.O.Q., Filter, Regulator IN, Check IN, Bracket, Restrictor OUT, Check OUT
RM 1100, 3/4" M, 1 PG10 mm, 11 mm, 120, yes, yes, yes, yes, yes, yes
RM 1200, 3/4" M, 2 PG10 mm, 11 mm, 80, yes, yes, yes, yes, yes, yes
RM 1300, 3/4" M, 3 PG10 mm, 11 mm, 40, yes, yes, yes, yes, yes, yes
RM 1400, 3/4" M, 4 PG10 mm, 11 mm, 24, yes, yes, yes, yes, yes, yes
RM 1700, 3/4" M, 7 PG10 mm, 11 mm, 24, yes, yes, yes, yes, yes, yes

Characteristics / Technical specifications

• Type: 2/2 solenoid valve, servo-assisted
• Orifice: DN 11 mm
• Materials: PA 66 (body), NBR/LSR/EPDM (diaphragms), stainless steel core
• Coil class: F (155 °C)
• Working pressure range: 0.2 - 10 bar
• Fluid compatibility: suitable for potable water
• Operating temperatures: continuous up to 60 °C; intermittent up to 90 °C (3 ON - 5 OFF)
• Control options: NC, NO, Latching
• Electrical connections: Faston 6.3 x 0.8 mm or cables up to 5000 mm
• KV (1 outlet): 20.74 L/min
