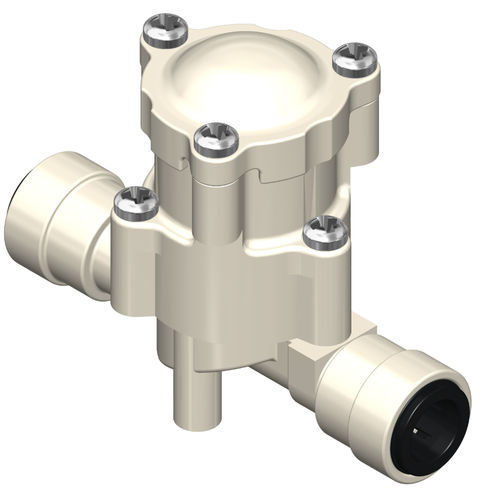

Water pressure regulator R

diaphragmEPDMsilicone

Product overview

• R Series pressure restrictor: fixed outlet pressure device for water and fluid control. Available in multiple fixed outlet values and compatible with R Series installations (R Single, R Mini, R Componible, R Modular, R Universal).

Installation

• Mountable in any position; optional plastic or metal fixing bracket or fixing screws for secure attachment.

Applications

• Household appliances
• Industrial furnaces
• Water dispensers
• Water and sanitary installations
• Multi-function hydromassage showers and tubs
• Irrigation systems

Physical specifications

• Body: PA 66 - 30% glass fibre (GF)
• Cap: PA 66 - 30% GF
• Gasket: silicone
• Diaphragm: EPDM reinforced
• Core: acetal resin
• Orifice sizes: ND 10 mm; ND 11 mm

Working specifications

• Maximum inlet pressure: 10 bar
• Ambient temperature: up to 60 °C
• Fluid temperature (typical): 25 °C
• Fluid direction: unidirectional
• Available fixed outlet pressures: 0.4; 0.5; 1.2; 1.5; 2.0; 3.0; 4.0 bar
• Secondary orifice: ND 5 mm

Hydraulic connections

• Male thread: 1/4"; 3/8"; 1/2"; 3/4"
• Female thread: 1/8"; 1/4"; 3/8"; 1/2"
• Hose tail: 10 mm; 13 mm
• Quick coupling options: 1/4"; 3/8"; 6 mm; 8 mm; 10 mm; 15 mm

MOQ

• 90° version: 120 pcs
• 180° version: 160 pcs

Models (summary)
0.4 bar | R Series installations: R Single / R Mini / R Componible / R Modular / R Universal | Inlet pressure: Max 10 bar; Outlet pressure: 0.4 bar | Datasheet and pressure chart available
0.5 bar | R Series installations: R Single / R Mini / R Componible / R Modular / R Universal | Inlet pressure: Max 10 bar; Outlet pressure: 0.5 bar | Datasheet and pressure chart available
1.2 bar | R Series installations: R Single / R Mini / R Componible / R Modular / R Universal | Inlet pressure: Max 10 bar; Outlet pressure: 1.2 bar | Datasheet and pressure chart available
1.5 bar | R Series installations: R Single / R Mini / R Componible / R Modular / R Universal | Inlet pressure: Max 10 bar; Outlet pressure: 1.5 bar | Datasheet and pressure chart available
2.0 bar | R Series installations: R Single / R Mini / R Componible / R Modular / R Universal | Inlet pressure: Max 10 bar; Outlet pressure: 2.0 bar | Datasheet and pressure chart available
3.0 bar | R Series installations: R Single / R Mini / R Componible / R Modular / R Universal | Inlet pressure: Max 10 bar; Outlet pressure: 3.0 bar | Datasheet and pressure chart available
4.0 bar | R Series installations: R Single / R Mini / R Componible / R Modular / R Universal | Inlet pressure: Max 10 bar; Outlet pressure: 4.0 bar | Datasheet and pressure chart available

Additional information

• Technical drawings and dimensional views available for R Single and dual variants; PDF datasheet and pressure charts provided in product documents.

Characteristics / technical specifications

• Series: R Series
• Body and cap material: PA 66 - 30% GF
• Gasket: silicone; Diaphragm: EPDM reinforced
• Core: acetal resin
• Available fixed outlet pressures: 0.4; 0.5; 1.2; 1.5; 2.0; 3.0; 4.0 bar
• Max inlet pressure: 10 bar
• Operating temperatures: ambient up to 60 °C; fluid typically 25 °C
• Fluid direction: unidirectional
• Hydraulic connections: multiple male/female thread sizes, hose tails and quick couplings (see details)
• MOQ: 120 pcs (90°); 160 pcs (180°)
