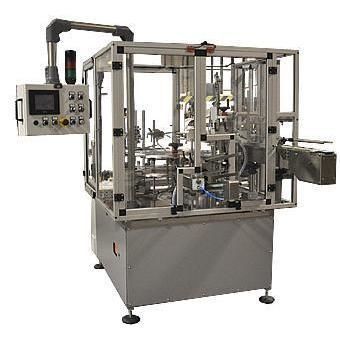

Vertical cartoning machine AV50

for the cosmetics industryfor the pharmaceutical industryautomatic

Overview
The AV50 is a carton forming machine designed for automatic assembly and closing of cartons for tubes and vials. Manufactured by F.C.L., the machine is supplied for a single carton format and integrates opening, placement, closing and optional printing operations. It is suitable for cosmetic, pharmaceutical and related packaging environments.

Product details

• Products handled: tubes, vials
• Accepted carton dimensions: min. 20 x 15 x 50 mm; max. 80 x 80 x 250 mm

Components

• Steel base frame and aluminum bed, fully covered with sound‑insulating plastic panels
• Adjustable carton magazine for carton lengths up to 46 cm
• Two height-adjustable star wheels with intermittent cam-driven motion
• Exit chute for closed cartons
• Two sets of interchangeable polyxene carton-reducer inserts mounted in the star wheels
• Sets of hammers and flap guides for carton closure
• Electrical installation
• Pneumatic equipment
• Integral safety guards for operator protection

Working cycle
Pre-folded cartons are loaded into the magazine and positioned vertically. A suction pickup group opens the cartons and places them into the carton-reducer on the transport star. Subsequent phases include closing of the lower flaps and optional pad or ink printing (2 or 3 lines). The carton advances intermittently to the operator-side manual loading station. In the final phase cartons are closed on the top side and automatically expelled via the exit chute.

Closure and options
Lower and upper flap insertion with opposing (asymmetric) or airplane-type flaps. Top and bottom gluing with Hot Melt is optional. Mixed solutions (gluing + insertion) available as option. Optional printing on 2 or 3 lines, dry or with ink.

Notes
The machine is supplied for a single carton format (format defined at order).

Technical specifications

• Type: Carton forming machine (carton erector) - model AV50
• Manufacturer: F.C.L.
• Products: tubes, vials
• Carton dimensions accepted: min. 20 x 15 x 50 mm; max. 80 x 80 x 250 mm
• Carton magazine adjustable up to 46 cm length
• Transport: intermittent star wheels driven by cam mechanism
• Handling elements: suction cups for opening and polyxene reducer inserts
• Closure systems: flap insertion (opposing/asymmetric or airplane type) and optional Hot Melt gluing
• Printing option: 2 or 3 lines, dry or with ink
• Electrical and pneumatic systems integrated
• Safety: full guards for accident protection
• Supply condition: delivered for a single carton format
