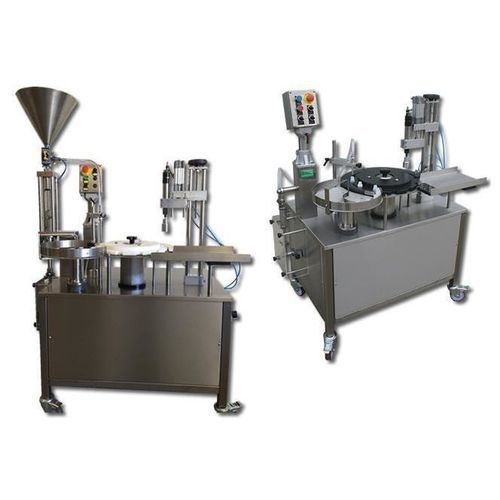

Semi-automatic filling and capping machine RTI 12/1 M

for plastic bottlesmonoblocvolumetric

Overview
Semi-automatic intermittent monobloc for filling and capping plastic or glass bottles. Model RTI 12/1 M engineered for volumetric dosing, moderate to high-speed production and use in standard or sterile environments.

Features

• Dosing range: 5 ml – 200 ml.
• Output: 700–1500 pcs/hour (20 ml); 700 pcs/hour (200 ml).
• Standard dosing unit: 1 AISI 316 dosing syringe with PTFE seals; multiple-syringe configurations available on request.
• Volumetric dosing with synchronized eccentric; flow meter option available.
• Capping: one capping head compatible with pilfer-proof, screw or push caps; ROPP/ aluminium capping options available.
• Construction: stainless steel base and frame; hygienic design suitable for sterile areas.
• Control: centralized electrical panel with PLC, display and inverter for speed regulation.
• Cap handling: vibrating cap feeder with chute, positioning device and soundproofing.
• Safety: CE-compliant guarding / anti-accident cabin.
• Nozzle: immersion nozzle and anti-drip system for inside-bottle dosing (suitable for small-neck bottles).
• Infeed/outfeed: entrance and exit trays and final collecting table; configurable for manual or automatic line feeding.

Options

• Automatic cap feeding systems complete with chute and positioning.
• Immersion nozzle group and anti-drip devices.
• Additional dosing syringes or custom dosing heads.
• Adaptations and qualification for pharmaceutical sterile production.

Technical specifications

• Model: RTI 12/1 M.
• Type: Semi-automatic intermittent monobloc (filling & capping).
• Dosing range: 5–200 ml.
• Production capacity: 700–1500 pcs/hour (20 ml); 700 pcs/hour (200 ml).
• Dosing system: volumetric (synchronized eccentric) or flow meter (option).
• Standard syringe: AISI 316 with PTFE (Teflon) seals.
• Control: centralized electrical panel with PLC, display and inverter.
• Cap handling: vibrating feeder with chute; soundproofing.
• Safety: CE-compliant guarding.
• Applications: suitable for plastic and glass bottles; configurable for sterile environments.
