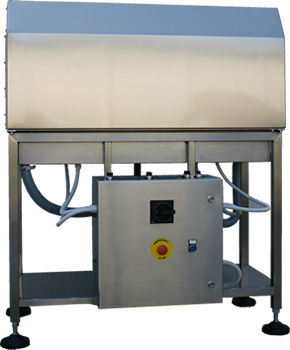

Hot air shrink tunnel

electric

Description
Shrink-sleeve hot air tunnel for thermal shrink-fitting of sleeves onto containers of various sizes and materials (glass, PET, metal). Equipped with an air generator with variable adjustment and a series of heating elements controlled by a digital thermostat. The conveyor belt is housed inside the tunnel.

Construction and operation

• Machine structure in stainless steel with internal thermal insulation.
• Variable air flow via adjustable air generator (inverter control).
• Height adjustment with adjustable feet; optional castor wheels with brakes.

Compatible materials

• Glass
• PET
• Metal (aluminium, steel)

Features / Technical specifications

• Use: thermal shrink-fitting of sleeve labels on containers of different formats and materials.
• Heating: series of heating elements controlled by a digital thermostat.
• Air handling: air generator with variable adjustment.
• Construction: stainless steel structure with internal insulation.
• Height adjustment: adjustable feet; optional castor wheels with brakes.
• Electrical supply: 380 V 3P + N + E.
• Maximum power consumption: 22 kW.
• Maximum temperature: 250 °C.
• Thermal protection: provided (see product page for details).
• External tunnel dimensions: 1200 mm × 600 mm × 550 mm.
• Working height: 950 / 1000 mm.
• Maximum container height: 350 mm.
