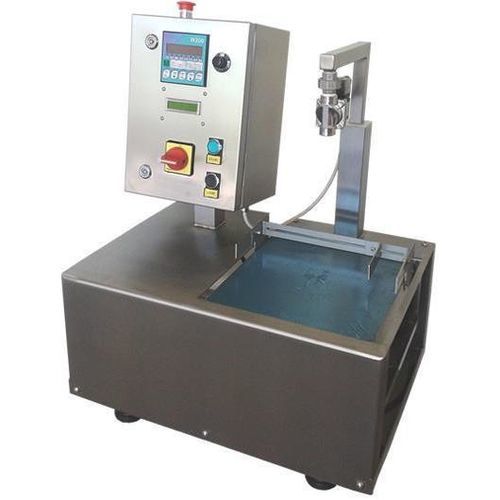

Semi-automatic filling machine

bottlecanfor liquids

Description
Bench-top semi-automatic weight filler designed for reduced footprint and industrial production of liquids. Integrated stainless-steel weighing system and recessed electrical control panel ensure compact installation. Electronic control with inverter provides dual motor speed control (soft start, full speed, reduced finishing speed) to minimize splashing and ensure repeatable fills.
Illuminated start button, cycle light and solenoid valve operation indicator simplify operator feedback. Unit supports automatic tare and automatic weight correction and includes an electronic control unit with 99 program memories and a rotary selector offering 10 quick recalls. Filling range: 50 ml to 10 L. Standard power supply: 220 V (380 V optional). Safety components operate at 24 V DC and the machine is fitted with an emergency stop.

Container sizes

• 50 ml
• 100 ml
• 250 ml
• 500 ml
• 750 ml
• 1 L
• 2 L
• 3 L
• 5 L
• 10 L

Features / Technical specifications

• Dimensions (L x W x H): 580 x 440 x 330 mm
• Weight: 30 kg
• Filling capacity: 50 ml – 10 L
• Filling speed: up to 120 containers/hour (reference: 5 L)
• Power supply: 220 V (380 V option)
• Pump: AISI 316 stainless steel, self-priming, flexible NBR impeller
• Valve: stainless steel solenoid valve with anti-drip system
• Control unit: electronic, dual motor speed control via inverter; 99 memories and rotary selector with 10 quick memories
• Weighing: integrated stainless steel scale, certified system, automatic tare and weight correction
• Safety: 24 V DC components, emergency stop button
• Operator signals: illuminated start button, cycle light, solenoid valve operation indicator
• Accessories: adjustable sliding stainless guide for container centering; three stainless nozzles with different diameters for small bottles and cans
