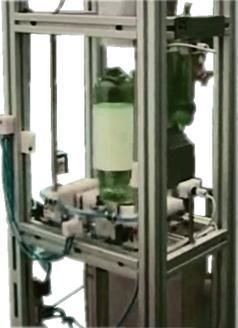

Stretch sleeve labelling machine

automatic

Overview
The stretch sleeve label is produced as a tubular film of linear low density polyethylene (LDPE) with elastic properties. The tube is formed off-line by folding and seaming, then flattened and pre-perforated at a constant pitch to allow tear-off during application. Thanks to the film elasticity, the sleeve fits the bottle profile without glue or heat-shrink processes. The system is based on a fully mechanical application concept combined with advanced design and manufacturing technologies.

Advantages and operation

• Direct handling from the reel to the container without intermediate handling stations, ensuring high precision and repeatability of sleeve placement.
• Compatible with PET, PE, PVC and glass containers — suitable for filled or empty, wet or dry bottles.
• Suitable for a wide range of sizes and shapes; format changeovers are simple and fast — complete changeover in approx. 20 minutes by replacing a few mechanical parts.
• Entirely mechanical operation simplifies maintenance and troubleshooting.
• Compact design enables easy integration into existing production lines.

Technical characteristics / specifications

• Label material: tubular film in linear low density polyethylene (LDPE) with elastic properties.
• Tubing production: off-line folding and seaming; flattened and pre-perforated at constant pitch for tear-off.
• No adhesive or heat-shrink required due to film elasticity.
• Compatible container materials: PET, PE, PVC, glass.
• Suitable for wet or dry containers, filled or empty.
• Quick format changeover: only a few mechanical parts to replace; changeover time approx. 20 minutes.
• Fully mechanical operation for simplified maintenance.
• Compact footprint for integration on existing lines.
